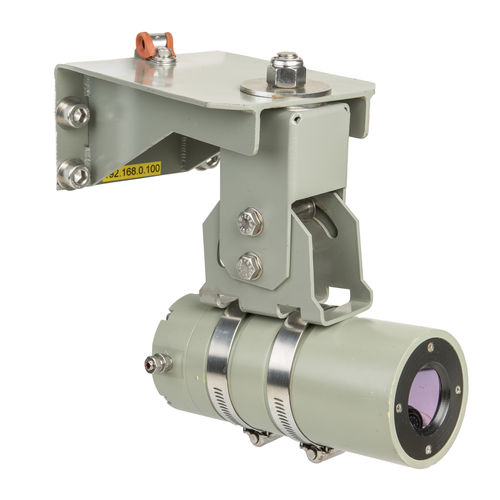

The Imenco 0482-6013 is an ultra-rugged naval marine IP thermal camera, with an athermalised Long Wave Infra Red (LWIR) lens and is ideally suited to both thermal and night vision observation purposes in ship engineering spaces and above deck locations.
Equipped with an amorphous silicon based microbolometer, high sensitivity thermal sensor, enabling excellent viewing resolutions of 384 x 288 at 25 / 30 fps. The Imenco 0482-6013 is an all-in-one robust and highly reliable camera capable of captruing high quality and medium resolution thermal scenes.
LWIR 384 x 288 thermal sensor
In-service navy proven
Designed to US Mil-Spec
On-board micro SD card storage
Power over Ethernet (PoE) compatible
Naval surface ships
Detecting hot spots & fires
The Imenco rugged compact IP Power over Ethernet (PoE) caméra supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, MPEG-4and MJPEG compatibility ail induded, dual streams can be simultaneously transmitted in either of these formats at different resolutions, frame rates, and image qualities for versatile platform intégration.
Data and power transmission to the camera is made via a single Cat5e or Cat6 cable which removes the requirement for the installation of additional junction boxes or power supplies. The camera also features a Micro SD card for local on-board storage.
The camera is housed in a machined, anodized and painted marine-grade Aluminium housing to provide a large degree of protection from the ship environment in which it needs to operate in.
