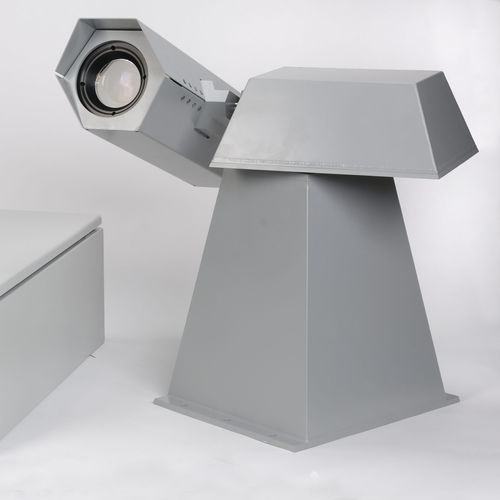

The Imenco 0465-6002-IP-HD HOSS HD colour PTZ CCTV camera provides an advanced colour digital sensor technology upgrade to the original Standard Definition (SD) monochrome camera. The Imenco Helicopter Operations Surveillance System (HOSS) has built an excellent reputation in providing the bridge with real time CCTV monitoring even in very low light conditions.
The integrated HD IP encoder can deliver up to four simultaneous video streams providing razor sharp 1080p HD colour video at 30fps. The ONVIF compliant IP camera can easily be integrated into standard Ethernet network based CCTV systems.
For surface ship applications the Imenco 0465-6002-IP-HD HOSS HD colour PTZ camera is typically installed above decks overlooking the heli-deck or flight deck.
The HOSS HD zoom caméra comprises a high sensitivity colour/mono CMOS sensor coupled to a 30:1 zoom lens, protected by a sealed, nitrogen purged, aluminium housing. A thermostatically controlled heated window helps to disperse external condensation. A Radar Cross Section Reduced (RCSR) shroud is also fitted around the caméra as part of the assembly.
The 316 stainless Steel pan & tilt unit provides continuous rotate and a ±70° tilt range. It also features fully enclosed cable routing to reduce overall footprint and improve safety and reliability.
In-service navy proven
1080p High Definition Colour/Mono Sensor
Unique Radar Cross Section Reduced (RCSR) profile
H.264 / MJPEG HD IP video streams – ONVIF compliant
Designed to US Mil Spec
Flight Deck Surveillance
Naval Surface Ships
Amphibious Well Deck Monitoring
