Control system 0457-6008

video surveillance systemfor shipsCCTV

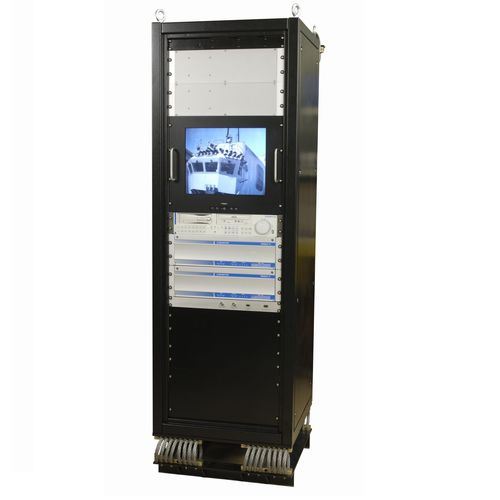

The Imenco 0457-6008 ALLSS Master Control Unit (MCU) 19″ Rack is found at the heart of US Navy proven Imenco Amphib Low Light Surveillance System (ALLSS) and is typically loctaed at a central signal marshalling and distribution point aboard the ship. Features In-service navy proven 64 in / 16 out / 2 quad view out Advanced DVR Wire rope isolator shock mounts Fully qualified to US Mil-Spec Applications Naval surface ships CCTV interface to ship entertainment system Video switching & control Digital recording & archiving The MCU consists of a 64 input x 16 output video switcher and telemetry controller with 2 additional quad cards providing real-time quad caméra images. An advanced 16 channel Digital Video Recorder (DVR) with 4TB internai storage on removable hard disk caddies is included. This unit will allow archiving of video to various media (DVD, USB) and additionally has a Local Area Network (LAN) interface. A local rack mounted LCD monitor and front serial port panel are also included to assist in the configuration, diagnostics and maintenance of the System. The video distribution amplifier unit provides up to 32 buffered composite video outputs for distribution to the ship's entertainment System. The MCU rack has been fully qualified to meet the stringent US Navy requirements of MIL-STD-901D "Hammer" shock test, MIL-STD-167-1A shipboard vibration, as well as MIL-STD-416E EMI for surface ships.
