Fixed thruster
for sailing superyachtshydraulictunnel type

fixed thruster
fixed thruster
fixed thruster
Add to favorites
Compare this product

Characteristics

Type
fixed
Application domain
for sailing superyachts
Power source
hydraulic
Other characteristics
tunnel type
Power

Max.: 100 kW (136 hp)

Min.: 9 kW (12.2 hp)

Description

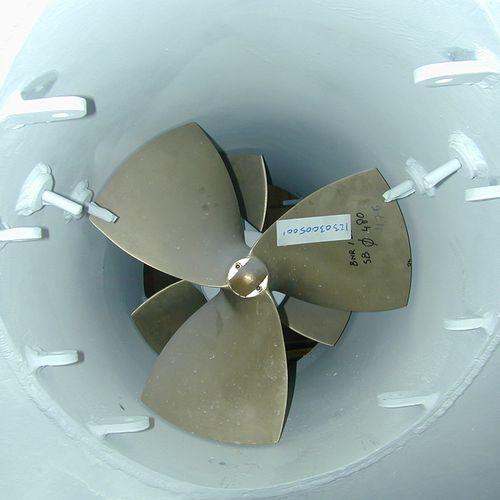

Direct driven (DF) Thrusters with the hydraulic motor mounted in a watertight pod within the thruster tube. Originally developed for use in small inland waterways, this type of thruster has evolved into a thruster with wider professional applications. Gear driven (GF) A bronze or aluminium gear housing with a right angle gear drive is mounted onto a flange in the thruster tube. Due to the increase in yacht dimensions, this range of thrusters now extends up to 125kW. They are therefore suitable for mega yachts of up to 60m. SPECIFICATIONS Type I9kW – 12kW Type II18kW – 37kW Type III60kW – 100kW Gear driven, counter rotating propellers (GF-CR) The demand for smaller thruster tubes in combination with requirements for reduced noise levels have led to the development of a new series of thrusters with two counter rotating propellers. This technology has been adopted from the commercial sector, where this type of thruster has been in use for many years. SPECIFICATIONS Type I9kW – 18kW Type II22kW – 55kW Type III75kW – 125kW RELATED PROJECTS ICON MY Maidelle Balk Shipyard SY Mikhail Vorontsov Promac MAR 7101 MY Amore Mio MY Bijoux
