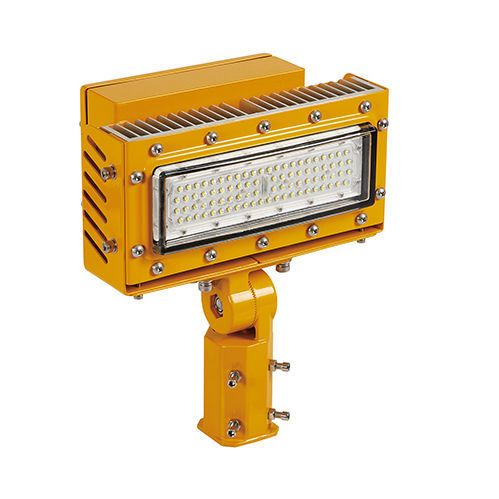

Exterior floodlight CFT9

for shipsLEDstainless steel

Scope of application: Safe and reliable use in the area of Zone 1 and Zone 2 with explosive gas mixture. It is suitable for the grade of IIA, IIB, IIC gas or steam environment, the temperature group is T1~ T6. It is used as the lighting for the cabin and the open space. Technical Data: - Explosion-proof mark: Ex db eb mbⅡC T6 Gb/-40℃~+45℃, Ex db eb mb ⅡC T5 Gb/-40℃~+45℃ - Rated voltage: AC100-240V 50/60Hz, DC24V - Power: 70W, 100W, 150W, 200W - Illuminant: LED - Color temperature: 5700K (optional: 3000K, 4000K, 5000K) - Protection class: IP66 - Cable outside diameter: Φ10-Φ16 - Installation method: lamp bar type - Material: lamp body is stainless steel, lampshade is toughened glass Characteristics / Technical Specifications: - Explosion-proof flood light for hazardous areas - Suitable for Zone 1 and Zone 2 with explosive gas mixtures - Compatible with IIA, IIB, IIC gas or steam environments - Temperature group: T1~T6 - LED light source - Multiple power options: 70W, 100W, 150W, 200W - Color temperature options: 3000K, 4000K, 5000K, 5700K - Rated voltage: AC100-240V 50/60Hz, DC24V - Protection class: IP66 - Stainless steel body, toughened glass lampshade - Installation: lamp bar type - Cable diameter: Φ10-Φ16 mm
