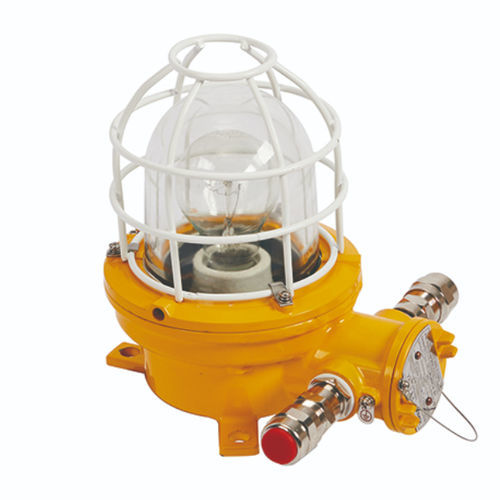

ATEX lighting CFD4-C

Scope of application: Safe and reliable use in the area of Zone 1 and Zone 2 with explosive gas mixture. It is suitable for the grade of IIA, IIB, IIC gas or steam environment, the temperature group is T1~T6. It is used as the lighting for the cabin and the open space. Technical Data: - Explosion-proof mark: Ex db ⅡC T3 Gb - Rated voltage: AC110V/220V/230V 50/60Hz, DC24V - Power: 100W - Illuminant: Incandescent lamp - Illuminous flux: 550lm - Lamp holder: E27 - Protection class: IP66/IP67 - Cable outside diameter: Φ10-Φ16 - Installation method: Ceiling-mounted type, seat type - Ambient temperature: -40℃ to +55℃ - Material: Lamp body is stainless steel, lampshade is toughened glass - Weight: 6.5 kg - Certificate: IECEX/ATEX Key Features / Technical Specifications: - Explosion-proof for hazardous areas (Zone 1 & 2) - Suitable for IIA, IIB, IIC gas/steam environments - Temperature group: T1~T6 - Rated voltage: AC110V/220V/230V 50/60Hz, DC24V - Power: 100W - Illuminant: Incandescent lamp - Illuminous flux: 550lm - Lamp holder: E27 - Protection class: IP66/IP67 - Cable diameter: Φ10-Φ16 mm - Installation: Ceiling-mounted or seat type - Ambient temperature: -40℃ to +55℃ - Material: Stainless steel body, toughened glass lampshade - Weight: 6.5 kg - Certification: IECEX/ATEX
