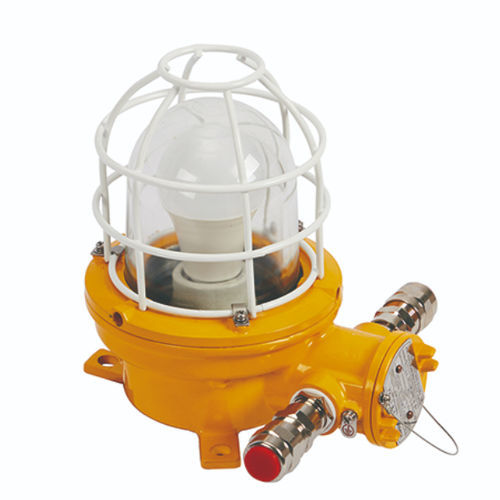

ATEX lighting CFD4-D

Scope of application: Safe and reliable use in the area of Zone 1 and Zone 2 with explosive gas mixture. It is suitable for the grade of IIA, IIB, IIC gas or steam environment, the temperature group is T1~T6. It is used as the lighting for the cabin and the open space. Technical Data: - Explosion-proof mark: Ex db IIC T6 Gb - Rated voltage: AC100-240V 50/60Hz, DC24V - Power: Max. 10W - Illuminant: LED bulb - Illuminous flux: 810lm - Color temperature: 6500K - Lamp holder: E27 - Protection class: IP66/IP67 - Cable outside diameter: Φ10-Φ16 - Installation method: ceiling-mounted type, seat type - Ambient temperature: -40℃ to +55℃ - Material: lamp body is stainless steel, lampshade is toughened glass - Certificate: IECEX/ATEX - Weight: 6.5 kg Characteristics / Technical Specifications: - Explosion-proof mark: Ex db IIC T6 Gb - Rated voltage: AC100-240V 50/60Hz, DC24V - Power: Max. 10W - Illuminant: LED bulb - Illuminous flux: 810lm - Color temperature: 6500K - Lamp holder: E27 - Protection class: IP66/IP67 - Cable outside diameter: Φ10-Φ16 - Installation method: ceiling-mounted type, seat type - Ambient temperature: -40℃ to +55℃ - Material: lamp body is stainless steel, lampshade is toughened glass - Certificate: IECEX/ATEX - Weight: 6.5 kg
