Outdoor light CFD13
marinefor shipsfor yacht

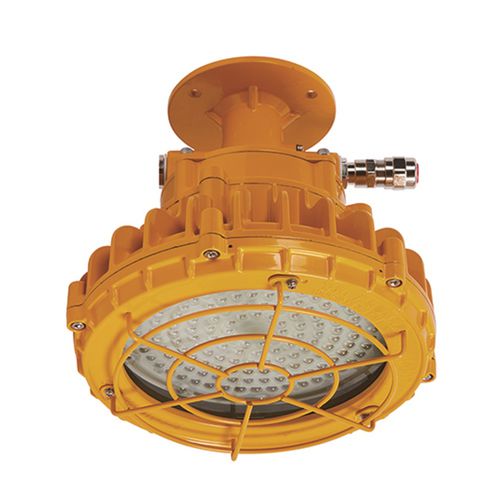

Outdoor light - CFD13 - Haixing Maritime Electric Group - marine / for ships / for yacht
Outdoor light - CFD13 - Haixing Maritime Electric Group - marine / for ships / for yacht
Outdoor light - CFD13 - Haixing Maritime Electric Group - marine / for ships / for yacht - image - 2
Outdoor light - CFD13 - Haixing Maritime Electric Group - marine / for ships / for yacht - image - 3
Add to favorites
Compare this product
Go to the Haixing Maritime Electric Group website for more information

Characteristics

Type
outdoor
Application domain
marine, for ships, for yacht, for hazardous areas, for shipyards
Applications
for deck
Light source
LED
Mounting
surface-mount
Material
aluminum alloy
Other characteristics
explosion-proof
Power

50 W, 80 W

Luminous flux

4,800 lm, 7,000 lm

Color temperature

3,000 K, 4,000 K, 5,000 K, 5,700 K

Weight

Max.: 11 kg
(24.3 lb)

Min.: 8.3 kg
(18.3 lb)

Description

Model：explosive-proof platform flood light CFD13 Explosion-proof mark：Ex db ⅡC T6 Gb，Ex db ⅡC T5 Gb Rated voltage：AC100-240V 50/60Hz Power：50W， 80W Illuminant：LED Illuminous flux：4800lm, 7000lm Color temperature：5700K(optional:3000K, 4000K,5000K) Protection class：IP66 Cable outside diameter：Φ10-Φ16 Installation method: seat type, ceiling-mounted type，hanging type Ambient temperature:-40℃-+55℃ Material: lamp body is high quality marine aluminium alloy, lampshade is toughened glass Weight：11 kg/ 8.8kg Optional：with G3/4 pipe joint Scope of application: suitable for the illumination for the passage in the flammable and explosive environment or sea oil platform
