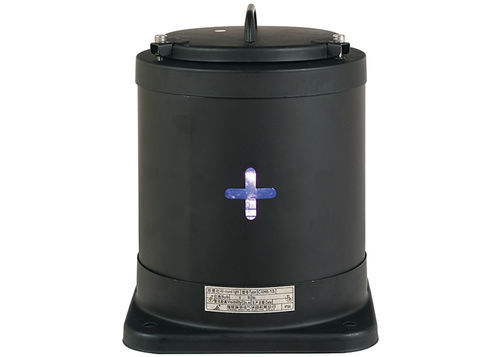

LED signalling light CXH7-1SLbluestainless steel220-240 V
Add to favorites
Compare this product
Characteristics
- Light source
- LED
- Color
- blue
- Material
- stainless steel
- Voltage
- 220-240 V
- Protection level
- IP56
- Other characteristics
- for the Panama Canal
- Visibility arc
360 °
- Service temperature
Min.: -30 °C
(-22 °F)Max.: 55 °C
(131 °F)- Weight
2.4 kg
(5.3 lb)
Description
Scope of application: applied to confirm the bow direction on voyage and is suitable for regulation signal recognition in particular canal
Technical Standard:
- Rated voltage: AC220V
- Power: Max. 6W
- Illuminant: LED
- Color: blue
- Horizontal Arc: 360°
- Visible distance: 1 n.m
- Protection class: IP56
- Cable outside diameter: Φ10-Φ12
- Installation method: Seat type
- Ambient temperature: -30℃ to +55℃
- Material: lamp body is stainless steel, lampshade material is engineering plastic
- Weight: 2.4kg
- Remark: with 3*1㎡ cable, equipped with a silicon controller dimming driver to realize dimming control
- Scope of application: Confirming bow direction and regulation signal recognition in canals
- Rated voltage: AC220V
- Power: Max. 6W
- Illuminant: LED
- Color: Blue
- Horizontal Arc: 360°
- Visible distance: 1 nautical mile
- Protection class: IP56
- Cable outside diameter: Φ10-Φ12 mm
- Installation method: Seat type
- Ambient temperature: -30℃ to +55℃
- Material: Stainless steel lamp body, engineering plastic lampshade
- Weight: 2.4 kg
- Equipped with 3*1㎡ cable and silicon controller dimming driver
