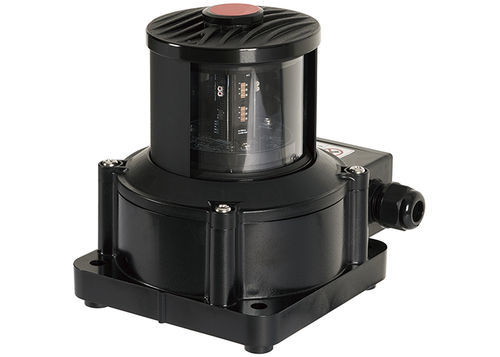

Ship navigation light CXH-15PL
LEDbase-mounted>50 m

Ship navigation light - CXH-15PL - Haixing Maritime Electric Group - LED / base-mounted / >50 m
Ship navigation light - CXH-15PL - Haixing Maritime Electric Group - LED / base-mounted / >50 m
Add to favorites
Compare this product
Go to the Haixing Maritime Electric Group website for more information

Characteristics

Application domain
for ships
Light source
LED
Mounting
base-mounted
Boat length
>50 m
Material
plastic
Voltage
220-240 V, 24 V
Protection level
IP66, IP67
Power consumption

Max.: 15 W
(0 hp)

Min.: 3 W
(0 hp)

Service temperature

Max.: 55 °C
(131 °F)

Min.: -30 °C
(-22 °F)

Weight

1.4 kg
(3.1 lb)

Description

Applied to the ships with the length of 50m or above as lamp signal liaison when night navigation. - Rated voltage: AC100-240V 50/60Hz, DC24V - Power: 3W, 15W - Light source: LED - Light source lifespan: 100,000 hours - Protection class: IP66/IP67 - Cable outside diameter: Φ8-Φ14 mm - Installation method: base-mounted type - Ambient temperature: -30℃ to +55℃ - Lamp body material: Engineering plastic PC+GF - Lampshade material: Engineering plastic PC - Weight: 1.4 kg - Optional function: Heating - when the environment temperature is below 5℃, heating starts; when the environment temperature is above 15℃, heating stops. Characteristics / Technical Specifications: - Product type: Navigation signal light - Application: Ships ≥50m length, night navigation - Light source: LED - Voltage: AC100-240V 50/60Hz, DC24V - Power: 3W, 15W - Protection: IP66/IP67 - Material: Engineering plastic (PC+GF for body, PC for lampshade) - Weight: 1.4 kg - Operating temperature: -30℃ to +55℃ - Optional heating function
