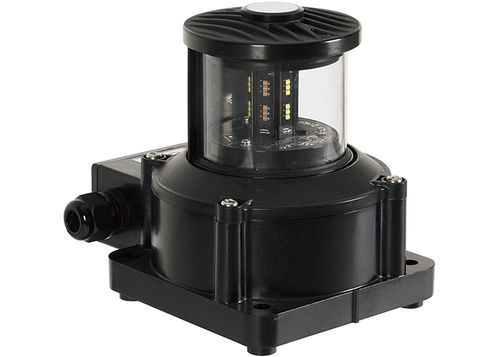

Ship navigation light CXH-105PL
LEDbase-mounted>50 m

Ship navigation light - CXH-105PL - Haixing Maritime Electric Group - LED / base-mounted / >50 m
Ship navigation light - CXH-105PL - Haixing Maritime Electric Group - LED / base-mounted / >50 m
Add to favorites
Compare this product
Go to the Haixing Maritime Electric Group website for more information

Characteristics

Application domain
for ships
Light source
LED
Mounting
base-mounted
Boat length
>50 m
Material
plastic
Voltage
220-240 V, 24 V
Protection level
IP67, IP66
Power consumption

Max.: 15 W
(0 hp)

Min.: 3 W
(0 hp)

Service temperature

Max.: 55 °C
(131 °F)

Min.: -30 °C
(-22 °F)

Weight

1.4 kg
(3.1 lb)

Description

Applied to ships with the length of 50m or above as lamp signal liaison when night navigation. Technical data: - Rated voltage: AC100-240V 50/60Hz, DC24V - Power: 2*3W, 2*15W - Light source: LED - Light source lifespan: 100,000 hours - Protection class: IP66/IP67 - Cable outside diameter: Φ8-Φ14 - Installation method: Base-mounted type - Ambient temperature: -30℃ to +55℃ - Lamp body material: Engineering plastic PC+GF - Lampshade material: Engineering plastic PC - Weight: 1.4 kg - Optional function: Heating, when the environment temperature is below 5℃, start heating; when the environment temperature is above 15℃, stop heating.
