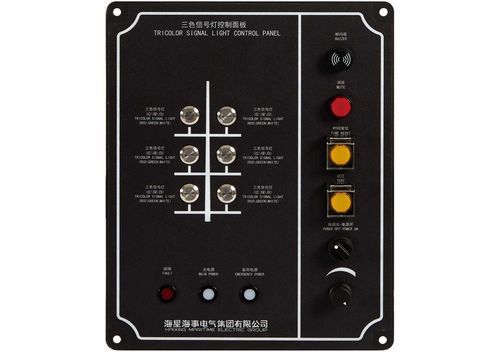

Ship lighting control module HX-SLC-2

for LED lights

Product features: - The control panel adopts three color LED indicator lights and button operation simulating the position of signal lights according to the actual ship layout for easy observation and operation. - The controller supports three color signal lights. - The control panel has a signal light fault sound and light alarm function. - The control panel has a dimming function for indicator lights. - The controller has the function of automatic conversion between main and backup power and the function of main and backup power loss alarm. - It has an external communication signal interface and VDR interface as well as a comprehensive alarm output interface. - Can design with one click to light up multiple signal lights. Technical standards: - Rated voltage: AC110V/50Hz, AC220V/50Hz, AC230V/50/60Hz - Controller power: 10W - Output way: according to the requirement - Output signal: Comprehensive alarm signal (normally open passive contact) - Communication interface: 1 channel carrier communication, 1 way RS485 (meet IEC 61162 requirement) - Protection class: Control panel IP22, control box IP44 - Installation method: Embedded installation of control panel, wall-mounting or built-in bridge on the driver's console - Ambient temperature: -10℃ to +45℃ - Product name: HX-SLC-2 - Category: Navigation signal light - Application: Ship and offshore lighting
