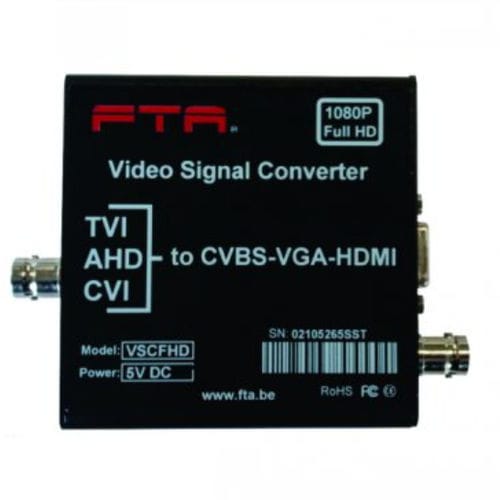

Signal converter VSCFHD

video mediaanalogHDMI

Product overview
Full HD 5MP video signal converter designed for surveillance and display integration. Accepts multiple analog and HD-analog inputs and provides HDMI, VGA and BNC outputs for monitors and recording equipment.

Key features

• Model / code: VSCFHD
• Supported inputs: AHD, TVI, CVI, CVBS
• Available outputs: HDMI, VGA, BNC
• Power: 5V DC (230V adapter included)
• CVBS (classic analog) mapped to 720P equivalent

Technical specifications

• Resolution: Full HD / 5MP (subject to input signal)
• Conversion: AHD/TVI/CVI/CVBS to HDMI/VGA/BNC
• Connectors: HDMI type A, VGA D-Sub, BNC
• Power supply: 5V DC (external adapter supplied)

Applications

• Integration into CCTV and security monitoring systems
• Connection of legacy analog cameras to modern displays and recorders
• Use in control rooms, surveillance stations and field diagnostics
