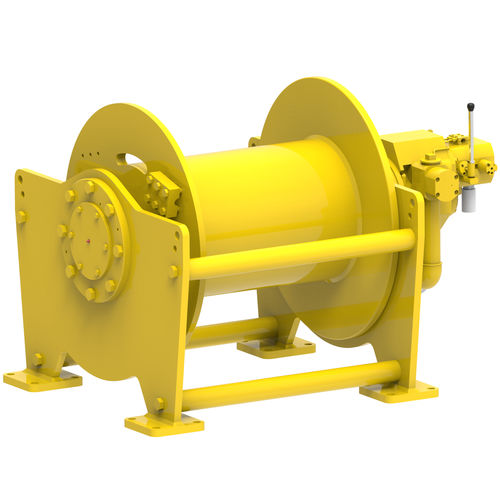

Ship winch OAW GP16 series

towingair drivesingle-drum

A range of compact lifting and pulling air winches specially designed for offshore applications or for any other hazardous environment where space is limited. The heavy duty planetary gearbox is mounted within the drum core, which both saves space and protects from any external damage. Winches designed to meet independent third party requirements such as Lloyds, ABS, etc. These standard winches can be fi tted with several options and accessories. Two of the winches are manriding prepared. Standard features OAW: utility lifting OMR: manriding prepared OAW LV: rotary vane motor including (biased) throttle valve OAW/OMR GP: contact less maintenance free gear motor including (biased) throttle valve Heavy duty planetary gearbox integrated in gearbox Exhaust silencing mufflers Cable fixing point at flange Two drum supports Standard temperature range -10° to +40°C Automatic disc brake Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 1023 FEM / ISO class: T4-L3-M5 Note: For pneumatic winches is the speed on the first layer the average speed. The speed at the top layer is at unloaded conditions. Mechanical options Marine / offshore coating systems Alternative drum lengths Drum pressure rollers Drum guards Drum locking pins Drum dividers Band brakes (manual or automatic failsafe) Manual disengaging clutches (only allowed for pulling applications) Spooling gears Grooved drums Manriding package Third party certifi cation (LRS, ABS, etc) ATEX Certifi cate
