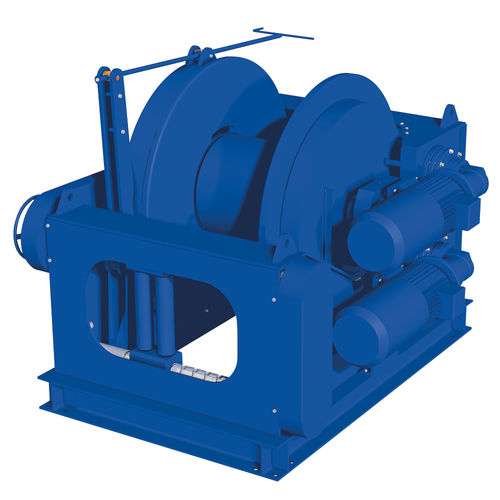

Ship winch SRM xx E2 series
anchormooringelectric drive

ship winch
ship winch
ship winch
Add to favorites
Compare this product

Characteristics

Application domain
for ships
Use
anchor, mooring
Drive mechanism
electric drive
Technology
single-drum

Description

This standard range of the SRM type mooring/anchor winches is designed for application on jack-up rigs, barges and other offshore or marine units. These standard winches can be fi tted with several options such as free spooling clutches and spooling gears. Also a range of mooring accessories can be offered with these winches such as fairleads, sheaves, wire rope and load measuring equipment. Winches will be subject to our standard internal test procedure, which can be witnessed by the client and/or third party. Standard features Heavy duty slew ring Heavy duty planetary gearboxes fi tted with pinions - SRM E; IP 56 TENV seawater-resistant 400-440 V AC / 3-phases / 50 - 60 Hz braked motors. SRM H; radial piston type hydraulic motors complete with brake valve Steel drum with cable fixing point at flange - Band brake (manual) Two drum supports Lifting lugs Three layer 2-component conservation according ISO 12944 category C4-High, colour RAL 1023 FEM / ISO class: T3-L3-M4 Available mooring equipment Horizontal deck sheaves without or with load pins Swivel fairleads 4, 6, 7 or 10 roller fairleads Deck bollards and chocks Mechanical options Automatic band brakes Alternative speeds Alternative supply voltages Drum guards Spooling gears Grooved drums Alternative drum dimensions / rope lengths / rope diameters Warping head

Catalogs
