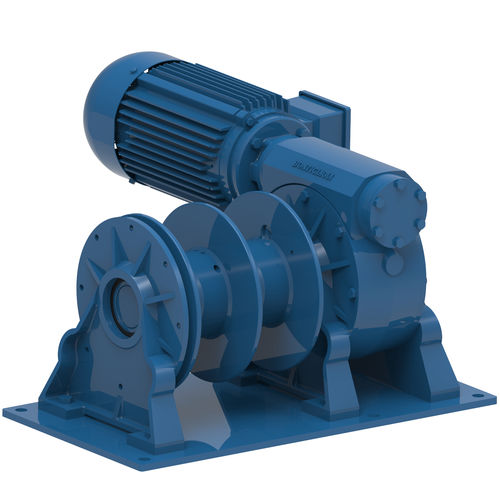

Ship winch AW 1500 ES / AW 1500 ES 2X
dredgingelectric drivedouble-drum

ship winch
ship winch
ship winch
ship winch
ship winch
Add to favorites
Compare this product


Application domain
for ships
Drive mechanism
electric drive


AW winches are designed to position and hold accommodation and ship-to-shore ladders and ladders between vessels and offshore installations. Constructed in accordance with SOLAS requirements for international shipping, the range features a dynamically and statically self-braking wormgear and emergency hand crank. Each type may be configured for single or twin rope operation and powered by means of an electric or pneumatic motor. PW winches are used to lower and lift the pilot ladder on board of seagoing vessels, EMCE has one standard design, PW 550, that has been supplied to several dredging vessel fleet owners. We have also supplied custom-built designs. Please ask about the available options. Standard features Self-braking wormgear transmission for the AW series Planetary gear for PW 550 SOLAS compliance IP 56 TENV motor protection for the AW ES series IP 66 TENV with standstill heating for the PW 550 Rotary vane, gear type air or motor for the AW LS series Steel drum (not grooved) with one or two cable fixing point(s) at flange Two drum supports Emergency hand crank for the AW series only Double layer 2-component conservation, colour RAL 5010 13 meter pilot ladder with 32 fl at steps, 4 spreaders and 4 rubber steps for PW 550 Pneumatic versions with hand control valve IP 66 spindle limit switch for PW 550 FEM / ISO class: T3-L3-M4


No catalogs are available for this product.
