Single block 93 seriesverticalmax. rope ø 12 mmmax. rope ø 10 mm
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of sheaves
- single
- Type
- vertical
- Maximum line diameter
- max. rope ø 12 mm, max. rope ø 10 mm
- Application domain
- for sailboats
- Working load
450 kg, 500 kg, 1,000 kg
(992.1 lb, 1,102.3 lb, 2,204.6 lb)- Breaking load
900 kg, 1,000 kg, 2,000 kg
(1,984.2 lb, 2,204.6 lb, 4,409.2 lb)
Description

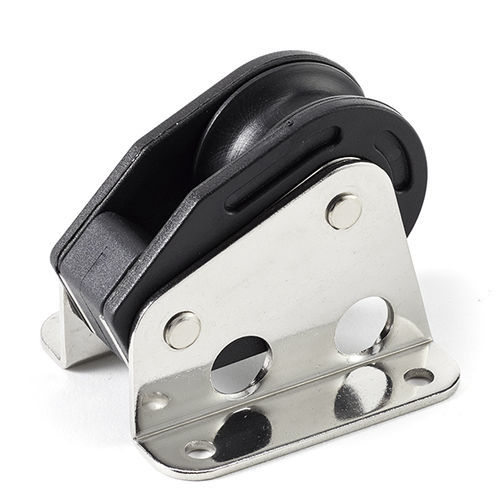

Vertical Turning Block
Art. 8798
Article - Sheaves - Ø Rope max - Ø Sheave - Safe Work Load - Break Load
No. - No. - mm - mm - kg - kg
93131F - 1 - 10 - 37 - 450 - 900
93111F - 1 - 10 - 60 - 500 - 1000
93711F - 1 - 12 - 70 1000 - 2000
