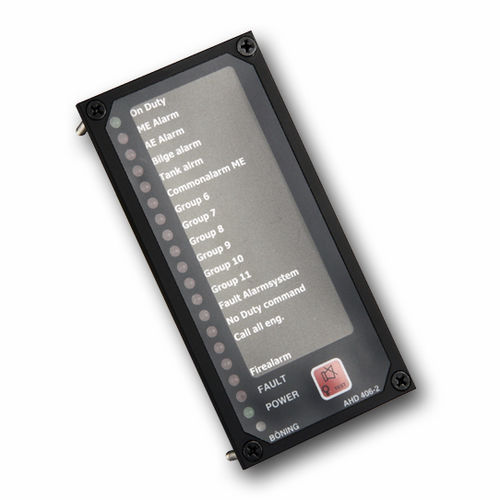

Ship call panel AHD 406-2
for engine roomsfor temporarily unmanned machinery

ship call panel
ship call panel
ship call panel
ship call panel
ship call panel
ship call panel
ship call panel
Add to favorites
Compare this product

Characteristics

Options
for ships, for engine rooms, for temporarily unmanned machinery

Description

Cabin Duty Alarm/Engineer Call Panel The AHD 406-2 is a monitoring device, which is used as a cabin or mess room panel in Duty Alarm/Engineer Call System on board ships, which are classified for all or temporarily unmanned machinery rooms. Product Features Compact design for wall built-in installation, front dimension 72mm x 144mm Low installation depth of only 26mm Degree of protection IP 44 (front side, rear side IP 10) Creation of max. 15 alarm groups from measuring points of connected alarm and monitoring systems Single LED indication for each alarm group in front panel, automatically dimmed Alarm group text field as common film negative for easy replacement Data communication with central unit AHD 882 via serial interface Galvanically isolated and independently operating binary inputs for fire alarm and engineer call message, each with appropriate LED-indication and integrated buzzer Acknowledgement push button for acoustic alarm
