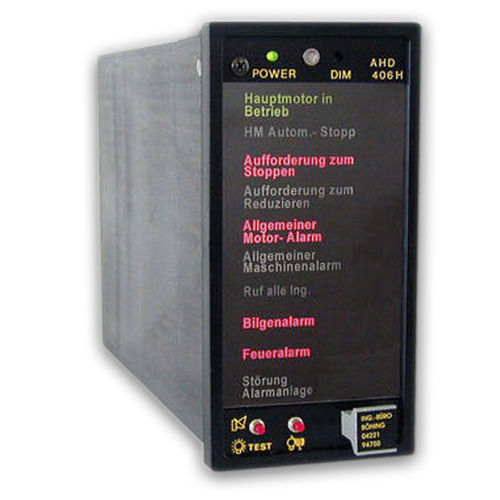

Ship indicator panel AHD 406 H
for yachtsdigitalsystem

ship indicator panel
ship indicator panel
Add to favorites
Compare this product


Characteristics

Application domain
for ships, for yachts
Display
digital
Applications
system, alarm
Other characteristics
LED

Description

Group Alarm Panel, 10 Alarm Groups AHD 406H is a microprocessor-controlled device, applied as group alarm and indication panel, i.e. within ship alarm and monitoring systems. Product Features Compact design for console, panel or switchbox installation Front dimension 72mm x 144mm Degree of protection IP 20 (front side, with front cover IP 44) Available with single LED indicators, or illuminated and automatically dimmed text field for dark rooms, text field as common film negative for easy replacement Acquisition of up to 144 single messages via 3 serial inputs (transmitted i.e. from KOMPAKT EDA 47 systems) Creation of max. 10 freely programmable groups (each single message may activate up to 2 groups) Each group can be programmed as alarm or indication Creation of max. 6 sub-groups, which are available as relay contacts (potential free change over contact) on 50-pole connection module (included in scope of delivery) Internal printer control with transmission of up to 144 text messages and max. 32 characters/text 2 serial outputs for control of cabin and mess room alarm panel 1 relay output each for horn and common alarm message, 6 sub-group relays Connection via ribbon flat cable and 50-pole connection module (included in scope of delivery) Integrated engineer call function Type approved by Germanischer Lloyd (further approvals on demand)
