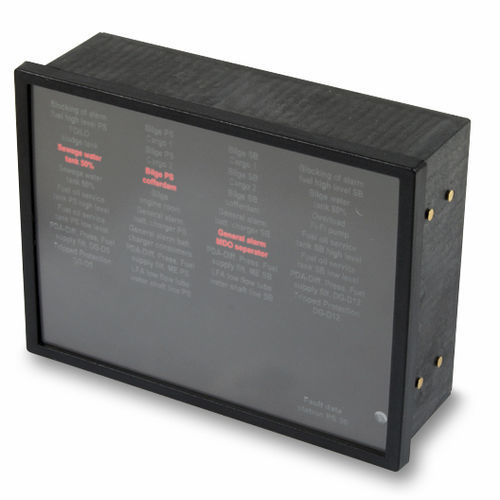

Ship panel PC KOMPAKT EDA 47
built-incompact

Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact
Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact
Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact - image - 2
Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact - image - 3
Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact - image - 4
Ship panel PC - KOMPAKT EDA 47 - Böning Automationstechnologie GmbH & Co. KG - built-in / compact - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Application domain
for ships
Type
built-in, compact

Description

Kompakt EDA 47 is a microprocessor-controlled device, with illuminated and automatically dimmed text fields, for up to 47 alarm and status messages of connected data stations. Product Features Compact design for console, panel or switchbox installation Front dimension 192mm x 144mm Degree of protection IP 23 (front side, with front cover IP 54) 48 illuminated and automatically dimmed text fields (40mm x 10mm), thereof max. 47 in free use Text field illumination, depending on measuring point type, each provided with 2 green, red or yellow Multi-LED-Chip (16 integrated LEDs). Unused fields are darkened to deep black Individual measuring point text (only text) on common film negative, low costs for inscription Each message can be programmed as alarm or status indication 5 inputs for blocking (release) of any other message On and off delay in range of 1 to 99s Data communication via serial interfaces, low demand for cabling Connection via ribbon flat cable and connection module (included in scope of delivery) Integrated buzzer 1 relay output each for horn and common alarm message
