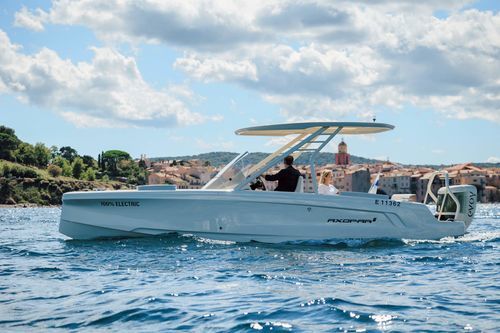

Outboard center console boat AX/E 22

electricstepped hullrecreational

Overview The AX/E 22 is a 100% electric 22 ft (7.2 m) powerboat combining silent, efficient electric propulsion with Mediterrana-inspired design. Trailerable and versatile, the AX/E 22 pairs instant torque and rapid acceleration with premium materials and careful craftsmanship for refined, emission‑free coastal operation.

Performance Powered by an Evoy Breeze electric outboard delivering nominal 120 HP (nominal 120 hp, peak 180 hp), the AX/E 22 offers instant torque and strong acceleration with a top speed of 36 knots. Its twin-stepped V hull (sharp entry hull) and lightweight construction optimise agility, stability and handling for secure manoeuvring at low and high speeds.

Design & Comfort Mediterrana design cues and hand-selected materials create an elegant onboard environment. Available in Spyder (open) and T‑Top variants, interior choices include a U-sofa layout or a multi-storage aft deck. The Mediterrana Edition adds solid wood finishes, premium upholstery and warm details such as teak elements and Mediterrana tags. The helm features a clean layout with teak dashboard finishes, illuminated switch panels and high-quality seating with Linetex and Seine fabrics.

Battery & Range The AX/E 22 is equipped with a single 63 kWh Kreisel battery with advanced immersion cooling. Estimated ranges: up to ~60 nautical miles at slow speeds (e.g. 5 knots) and approximately 17 nautical miles when cruising at 25 knots. The system is engineered to maximise time on the water through efficient battery and propulsion integration.

Charging & Energy Management Multiple charging options supported: DC fast charging (e.g. 120 kW / 150 kW) providing ~80% in 50–60 minutes and full charge in ~1 h 10–1 h 20 depending on power; AC options include 40 kW (3‑phase 63 A, 400 VAC) and standard 6 kW (1‑phase 32 A, 230 VAC). The boat supports AC and DC charging inlets and includes a charging cable for 6.6 kW AC charging. Onboard systems (E‑Brain™ and Next4 Q Smart Boating Screen) and the Evoy / AX/E app offer charging management and remote monitoring.

Configuration & Layouts Available versions: Spyder (open-air) and T‑Top (shade and weather protection).

• U‑Sofa layout: spacious seating and convertible sunbed options.
• Multi‑storage layout: maximised storage compartments for gear and practical use.
• Modular interior options, teak tables, and premium upholstery packages (AX/E upholstery + Mediterrana trim options).

Technology & Connectivity The AX/E 22 features a Next4 Q 10" Smart Boating Screen with navigation (Navionics), weather updates, FM/DAB radio, Bluetooth, Wi‑Fi and 4G capability, NMEA support, real‑time motor and battery status, trip logging and over‑the‑air updates. The Evoy mobile app provides remote management (GPS position, charging control, trip logs, sensor readings and share/unshare boat access).

Equipment Highlights Standard equipment includes the Evoy Breeze outboard, matching hull and motor colour options, Clarion audio system, teak table, deck and rail lighting, mooring package, harbour covers for console/seats/sofas, stainless steel hardware (316), integrated swim platforms with concealed telescopic ladder, automatic and manual bilge pumps, and more. Optional equipment and additional packages are available for customisation.

Technical specifications

• Hull design: Twin stepped 20° V “Sharp entry hull”
• Charging Time: ~45 min DC fast charger; ~2 h with 22 kW AC charger
• Category: C - Coastal
• Range (approx.): 17 nm at 25 kts; 60 nm at slow speeds
• Voltage: 400 V
• Battery: 63 kWh (Kreisel)
• Outboard motor: 1 x Evoy Breeze 120 hp (nominal 120 hp, peak 180 hp)
• Draft to props: 0.8 m / 2 ft 8 in
• Beam: 2.23 m / 7 ft 4 in
• Overall length (excl. engine): 7.2 m / 23 ft 7 in
• Passengers (Category C): 6
• Top speed: 36 knots
• Weight (approx.): 1990 kg / 4387 lbs
