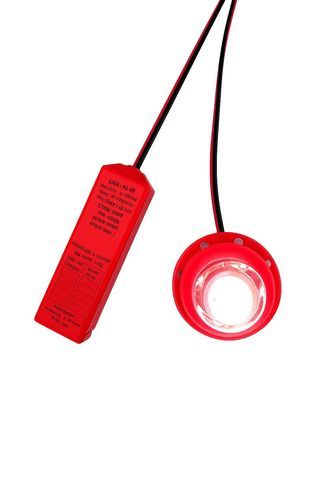

Lifejacket rescue light AQLNK-AL15

Overview
The AQLNK-AL15 aviation survivor lifejacket light is a TSO C-85b / ETSO C-85b reserve battery-powered emergency light designed for installation on aviation lifejackets. It provides automatic water activation and a continuous white light to aid visual detection of survivors.

Product details
The AQLNK-AL15 activates automatically on immersion in freshwater or seawater. Once activated it emits a continuous white light to facilitate night or low-visibility visual location of persons in the water. The unit is compact, lightweight and intended for integration with certified aviation lifejackets.

Features

• White steady LED dome light
• Built-in water sensors for automatic activation
• Optional lead lengths for jacket installation
• Functional, compact design
• Lightweight: 38 g
• Maintenance-free, tamper-proof construction

Approvals & suitability
Certified to TSO‑C85b / ETSO‑C85b / CTSO‑C85b. Intended for aviation lifejackets and designed to meet regulatory requirements for aircraft survival lighting where these approvals are specified.

Technical specifications

• Model: AQ8A Lifejacket Light
• Commercial designation: AQLNK-AL15
• Colour: White LED
• Activation: Water Auto
• Dimensions: 62.5 mm (h) x 25.4 mm (w) x 23.5 mm (d)
• Weight: 38 grams
• Battery type: Alkaline (reserve)
• Light output (feature): continuous white light ≥ 1 cd for minimum 8 hours
• Output (spec table): ≥ 0.75 cd
• Duration (spec table): ≥ 13 h at ≥ 0.75 cd at -1ºC
• Storage life: 5 years from date of manufacture
• Approvals: TSO-C85b / ETSO-C85b / CTSO-C85b
