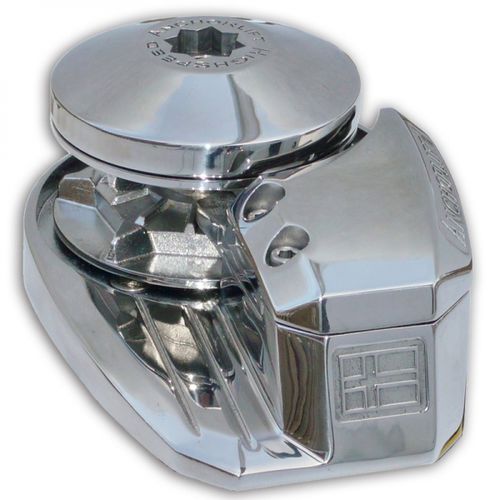

Electric windlass Barracuda 900 - B912for boatverticalabove deck
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Operation
- electric
- Application domain
- for boat
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Function
- anchor with capstan
- Working load
220 kg
(485 lb)- Maximum pull
660 kg
(1,455 lb)- Engine power
900 W
(1 hp)- Power supply
12 V
- Amperage
24 A
- Boat length
Max.: 35'00"
(11 m)Min.: 20'00"
(6 m)- Height
117 mm
(5 in)- Width
180 mm
(7 in)- Length
270 mm
(11 in)- Weight
8,300 g
(293 oz)
Description
These Low Profile models take up less space on the deck. Designed for smooth & silent motor/gear operation under the deck. Powerful and compact windlass with capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 40 m (120 ft) per minute. Manual free fall with adjustable clutch. Stainless steel parts in high polished steel AISI 316L. Long term trouble-free operation. Works with chain only or rope/chain combination.
Model B1012 can also be used on stern windlass systems (Scandinavian marked mainly) and can be used on sailboats up to 42Ft. and motorboats up to 37Ft.
