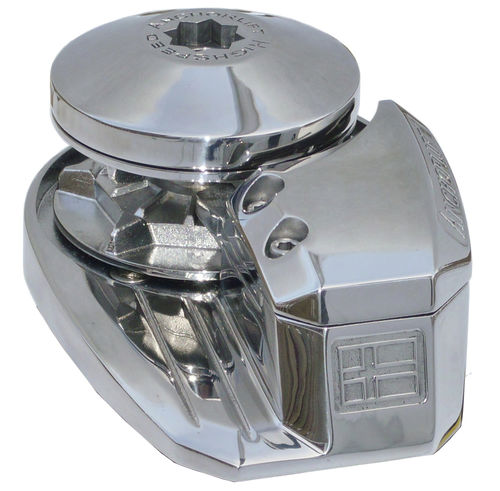

Electric windlass B612-7for boatverticalabove deck
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for boat
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Working load
180 kg
(397 lb)- Maximum pull
540 kg
(1,190 lb)- Engine power
600 W
(1 hp)- Power supply
12 V
- Amperage
18 A
- Boat length
Min.: 20'00"
(6 m)Max.: 35'00"
(11 m)- Height
117 mm
(5 in)- Width
180 mm
(7 in)- Length
270 mm
(11 in)- Weight
7,500 g
(265 oz)
Description
These Low Profile models take up less space on the deck. Designed for smooth & silent motor/gear operation under the deck. Powerful and compact windlass with capstan for optional warping operation. Vertical shaft in stainless steel. High-speed drop of up to 40 m (120 ft) per minute. Manual free-fall with adjustable clutch. Stainless steel parts in high polished steel AISI 316L. Long term trouble-free operation. Works with chain only or rope/chain combination.
Model B1012 can also be used on stern windlass systems (Scandinavian market mainly) and can be used on sailboats up to 42 Ft. and motorboats up to 37 Ft.
