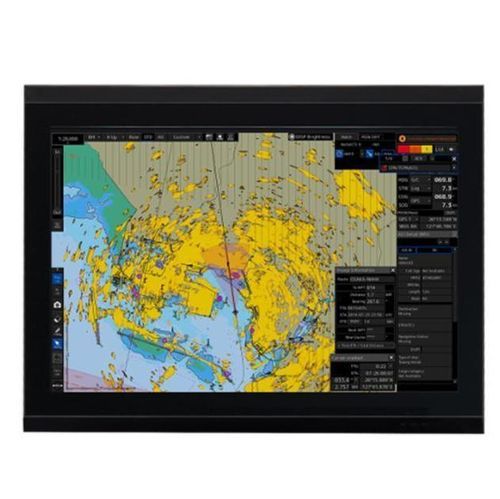

Marine display AlphaScreen

navigationradar26"

Overview The AlphaScreen 26-inch is a marine navigation monitor designed for operation in maritime environments. It complies with IEC 60945 for temperature, humidity and vibration and has an IP65 ingress protection rating. Electronic substrates feature a moisture-proof coating and the cooling fan is externally accessible for replacement.

Features

• Long-lasting LED backlight
• Factory-calibrated for ECDIS color reproduction
• Wide dimming range
• Approvals from major classification societies

Certifications and Approvals The monitor holds approvals from LR (UK), DNV GL (Norway/Germany), ABS (USA) and NK (Japan). It meets IEC 61174, IEC 62288 and IEC 62388 standards for ECDIS and RADAR applications. Additional certifications are available on request.

Design & Serviceability The monitor uses an LED backlight for longer life, lower power consumption and mercury-free operation. Backlight brightness, gamma and RGB are factory-calibrated to ensure accurate ECDIS color reproduction. The cooling fan is accessible for easy exchange.

Technical specifications

• Compliance: IEC 60945 (temperature, humidity, vibration)
• Ingress protection: IP65
• Coating: moisture-proof for electronic substrates
• Backlight: LED (long life, lower power, mercury-free)
• Factory calibration: brightness, gamma, RGB for ECDIS
• Approvals: LR, DNV GL, ABS, NK
• Standards: IEC 61174, IEC 62288, IEC 62388
• Serviceability: accessible cooling fan for replacement
