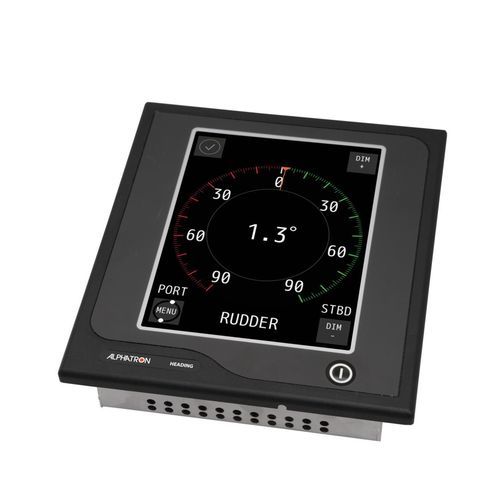

Offshore platform indicator AlphaRudder MFM

marinerudder anglewith touchscreen

Overview
The AlphaRudder Indicator MFM is operated via an intuitive 6.5-inch color touchscreen and is available in two harmonized colors. The AlphaLine Indicator series provides software-driven navigation and communication instruments for marine and offshore bridge applications.

Product details
The AlphaRudder Indicator is a MED Type Approved system displaying rudder angle information. The system can be expanded with a rudder feedback unit shown on a repeater. The rudder angle scale is selectable Fore or Aft and can be set to 45°, 60°, 70° or 90°. It is recommended to add the Analog Interface Mk.2 (G-002343) to convert analog rudder feedback signals to NMEA. Software configurations available: Indicator or Repeater.

Features

• MED Type Approved
• 6.5-inch color touchscreen
• Uniform AlphaLine design; two color options
• Expandable with rudder feedback unit and repeater support
• Available as Indicator or Repeater software versions

Technical specifications

• Display: 6.5-inch color touchscreen
• Colors: two harmonized options
• Rudder angle display: Fore or Aft selectable
• Rudder angle scale options: 45°, 60°, 70°, 90°
• Expandable with rudder feedback unit (repeater support)
• Recommended accessory: Analog Interface Mk.2 (G-002343) to convert analog signals to NMEA
• Software-driven instrument line; Indicator and Repeater versions available
• Application: marine and offshore use
