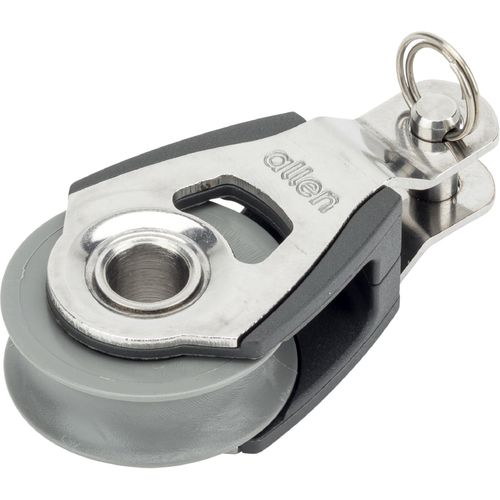

Single block A2030PF / A2030PF-873 / A2030PSC
with swivelwith forkplain bearing

single block
single block
single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Configuration
with swivel, with fork
Bearing type
plain bearing
Maximum line diameter
max. rope ø 8 mm
Application domain
for sailboats
Material
stainless steel
Working load

140 kg
(308.6 lb)

Breaking load

600 kg
(1,322.8 lb)

Description

Plain Bearing Single With Fork Head And Removable Pin. The A2030PF features a fork head with removable clevis pin making it a customisable block to multiple applications. The block also features a central rivet that provides great options as a tie on becket. Our plain bearing blocks are made using 100% recycled plastics. Plain bearing blocks will also feature a grey sheave to differentiate them from the existing dynamic range, which has black sheaves. lain Bearing Single With Fork Head And Vang Key. The A2030PF-873 features a fork head with vang key. The block also features a central rivet that provides great options as a tie on becket. Our plain bearing blocks are made using 100% recycled plastics. Plain bearing blocks will also feature a grey sheave to differentiate them from the existing dynamic range, which has black sheaves. Plain Bearing Single With Swivel The A2030PSC plain bearing swivel block is manufactured using 100% recycled plastics and our recognisable stainless steel side cheeks. The swivel on the head of the block allows the block to rotate to whichever angle is best for the sheet. Ideal for elastic take up systems. This block looks very similar to the 30mm dynamic version. To differentiate we have changed the sheave colour to grey.
