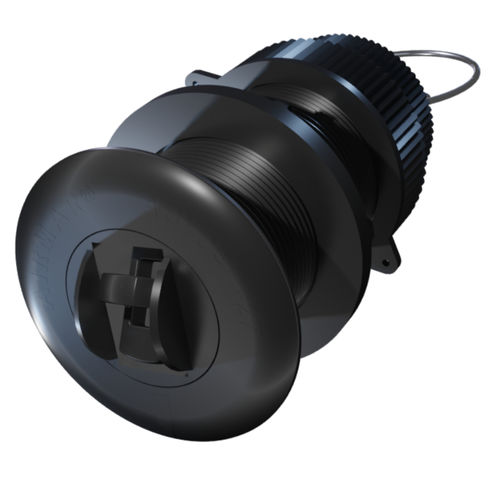

Temperature sensor ST950B-A

levelspeedfor boat

Speed performance has been taken to the next level with the introduction of the ST950 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST950 out-performs all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots. The plastic, bronze, and stainless-steel outer housing options are compatible with all hull types. These low-profile housings are nearly flush and minimize drag with only 5 mm (3/16") extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel. Speed and fast-response water-temperature Best-in-class speed range from 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) Analog output Retractable insert in a low-profile plastic, bronze or stainless-steel housing with a water valve ST950—Retrofits into Airmar P17 and B17 housings Functions: Speed, Temperature Mounting Style: Low Profile Thru-Hull Protocol Output: Analog Housing: Bronze Hull Material: All hull materials Hole Size: 51 mm (2") Retractable housing: Yes Cable-Length: 9 m (30’) Analog cable Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing Retrofits: Retrofits into AIRMAR P17, B17 housings Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) Temperature Accuracy: ±0.5°C (±1.8°F)
