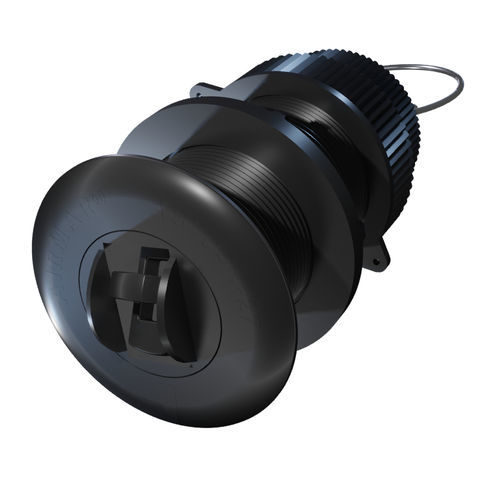

Speed sensor ST900
water temperaturefor boatsthrough-hull

speed sensor
speed sensor
Add to favorites
Compare this product


Characteristics

Measured value
water temperature, speed
Application domain
for boats
Other characteristics
through-hull, NMEA 2000®, NMEA 0183®
Power supply

Min.: 9 V

Max.: 16 V

Overall length

75 mm
(3 in)

Overall width

75 mm
(3 in)

Overall height

125 mm
(5 in)

Description

Speed performance has been taken to the next level with the introduction of the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 out-performs all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots. The plastic, bronze, and stainless-steel outer housing options are compatible with all hull types. These low-profile housings are nearly flush and minimize drag with only 5 mm (3/16") extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel. Features Speed and fast-response water-temperature Best-in-class speed range from 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) Analog output Retractable insert in a low-profile plastic, bronze or stainless-steel housing with a water valve ST900—Retrofits into Airmar P120 and B120 housings Specifications Weight: - Plastic: 0.7 kg (1.4 lb.) - Bronze: 1.3 kg (2.8 lb.) - Stainless Steel: 1.6 kg (3.5 lb.) Hull Material: Compatible with all hull materials Hole Diameter: 51 mm or 2" Speed Range: 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) Pulse Rate: 5.7 Hz per knot Water Temperature: - Range: -10° to 40°C (14° to 104°F) - Accuracy: ±0.5°C (±1.8°F) Pressure Rating: 3 m (10') Power: - Supply Voltage: 9 to 16 VDC - Supply Current: <200 mA Standard Cable Length: 9 m (30') Includes: Blanking plug Certifications and Standards: Complies to IERC60945
