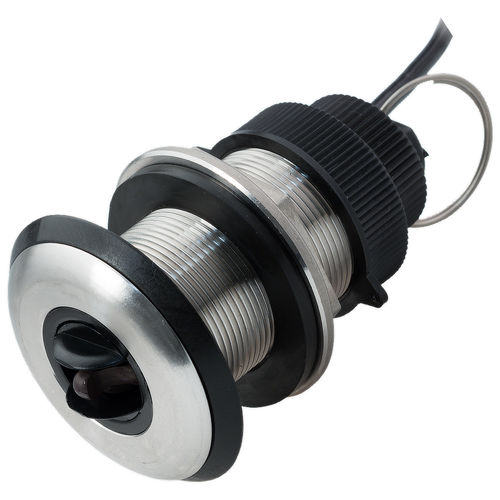

Temperature sensor ST850SS-A

water temperaturespeedfor boat

The ST850/800 is an analog, retractable speed and temperature sensor. The sensor fits inside a low profile, stainless steel thru hull housing that is nearly flush to the hull, with only 5 mm (3/16”) extending outside of the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel. Speed and temperature Speed Range: 2 to 45 knots (2 to 52 MPH) Analog output Retractable insert in a low-profile stainless steel housing with a water valve Also available in a plastic or bronze housing with water valve Retrofits into B617V, P617V, SS617V, P217, P314or ST650 housing Functions: Speed, Temperature Mounting Style: Low Profile Thru-Hull Power Rating: N/A Protocol Output: Analog Housing: Stainless Steel Hull Material: All hull materials Hole Size: 51 mm (2") Retractable housing: Yes Cable-Length: 9 m (30’) Analog cable Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing Data Rate: 1X per second Pulses: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile Retrofits: Retrofits into B617V, P617V, SS617V, P217, P314 or ST650 housing Speed Range: 2 to 45 knots (2 to 52 MPH) Temperature Accuracy: ±0.5°C (±1.8°F) Tilted Element: No Usable Shaft Length: 55 mm (2.15") Voltage: 9 to 16 VDC Water Temperature: -10° to 40°C (14° to 104°F) Weight: 1.3 kg (2.8 lb.)
