Outdoor light 00777-TSWRB

marineLEDrecessed

Product Overview

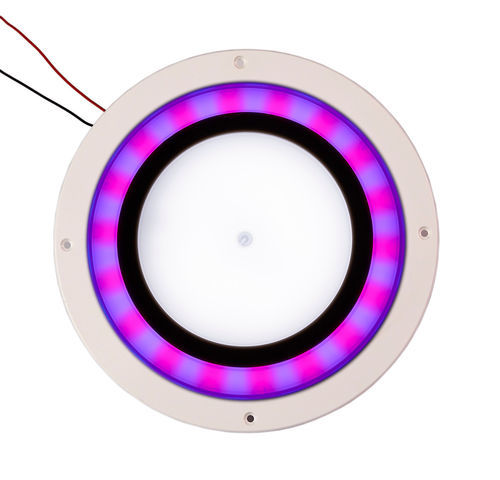

8.5" recessed LED dome light with integrated touch control offering three static colors (White, Red, Blue) and a dynamic red-blue loop. Designed for marine vessels, RVs and outdoor installations, the fixture uses an aluminum alloy bracket and impact-resistant PC lens. IP65 rated for wet environments and engineered for stable operation on 10-30VDC systems (compatible with 12V and 24V networks). Touch activation cycles colors; the final press initiates a staggered red/blue sequence for signaling or visual effect.

Key Specifications

• Material: Aluminum alloy bracket; PC (polycarbonate) lens
• Control: Integrated touch switch
• Lighting modes: White / Red / Blue / Red-Blue dynamic loop
• Voltage: 10-30VDC (12V & 24V compatible)
• Protection rating: IP65 (waterproof)
• Diameter: Ø 8.5" (215.9 mm)
• Packaging: 20 units per carton, individual white box

Model Options
00777-TSWRB - White / Red / Blue - Staggered Red & Blue Cycle (Last Circuit)

Technical Specifications

• SKU: 00777-TSWRB
• Product type: 8.5" recessed touch-control LED dome light
• Materials: Aluminum alloy bracket; PC lens
• Touch control cycles: White, Red, Blue, Red-Blue dynamic loop
• Operating voltage range: 10-30VDC (suitable for 12V and 24V systems)
• Ingress protection: IP65 (waterproof)
• Diameter: Ø 8.5" (215.9 mm)
• Packaging: 20/CTN, individual white box
