Temperature sensor 50/200 Combi C

acousticfor boatsdepth sounder

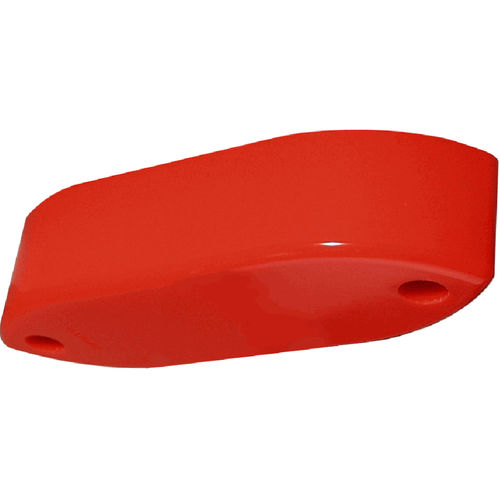

Simrad 50/200 Combi C is a 50 and 200 kHz dual frequency single beam transducer The Simrad 50/200 Combi Ctransducer combines two transducers and one temperature sensor in a single housing. It is designed with a streamlined shape for hull mounting on small vessels. TYPICAL APPLICATIONS Fish finding echo sounders KEY TECHNICAL SPECIFICATIONS Note that the specifications can be altered without prior warning. For a full set of specifications, see the data sheet. Frequency: 50 and 200 kHz Beamwidths: 50 kHz longitudinal: 10° 50 kHz transverse: 16° 200 kHz longitudinal: 7° 200 kHz transverse: 7° Maximum pulse power input: 1000 W Maximum continuous power input: 10 W Maximum transducer depth: 20 m Cable length: 10 m Weight with cable: 6.5 kg Physical dimensions: Length: 430 mm Width: 138 mm Please note! The transducer cable must not be exposed to oil or other petroleum fluids.
