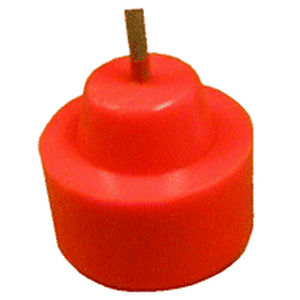

Fishfinder acoustic transducer 50-18
depth sounderfor boats

fishfinder acoustic transducer
fishfinder acoustic transducer
Add to favorites
Compare this product


Characteristics

Applications
fishfinder, depth sounder
Application domain
for boats

Description

Simrad 50-18 is a 50 kHz single beam echo sounder transducer The Simrad 50-18 is a small, single-beam transducer incorporating seven Tonpilz elements in a polyurethane housing. Its compact design requires little space and it is employed extensively with navigational echo sounders. A compatible steel tank and mounting ring are also available. TYPICAL APPLICATIONS Hydrographic echo sounders Navigation echo sounders KEY TECHNICAL SPECIFICATIONS Note that the specifications can be altered without prior warning. For a full set of specifications, see the data sheet. Frequency: 50 kHz Circular beam width: 18 ±3° Maximum pulse power input: 500 W Maximum continuous input: 10 W Maximum transducer depth: 10 m Cable length: 20 m Weight without cable: 2 kg Physical dimensions: Diameter: 129 mm Height, main body: 115 mm
