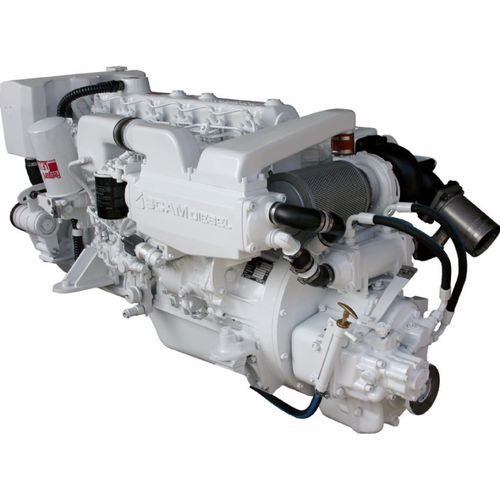

Inboard engine SD 16.200 T dieselboatingturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- turbocharged, direct fuel injection
- Cooling system
- water-cooled
- Power
123 kW, 138 kW, 154 kW
(167.2 hp, 187.6 hp, 209.4 hp)- Displacement
7,545 cm³
(255 US fl oz)- Number of cylinders
6 unit
- Engine speed
2,600 rpm, 2,700 rpm, 2,800 rpm
(16,336 rad.min-1, 16,965 rad.min-1, 17,593 rad.min-1)- Bore
118 mm
(4.6 in)- Stroke
115 mm
(4.5 in)- Length
1,694 mm
(67 in)- Width
764 mm
(30 in)- Height
818 mm
(32 in)- Weight
640 kg
(1,411 lb)
Description
SCAM DIESEL decided to use Mitsubishi 6D16-T as base engine for more reasons. The engine displays high quality, efficiency, low exhaust emissions and low noise level. With its low weight and compact design it is the number one engine among 7 litre engines in Japan.
During its marinization SCAM made sure that all elements which require maintenance be easily accessible. Double cooling system maintains optimal working temperature. The parts that come into contact with the seawater are made of corrosion-resistant material. The engine is equipped with electrical installation, instrument panel and emergency shutdown, as well as with necessary alarms. Standard equipment includes flexible engine mounts, cable clamps and oil drain pump.
Altenator - 24 V 50 A
Marine gearbox - TWIN DISC TECHNODRIVE TM 265/265A, TWIN DISC MG 5050SC/5050A
Exhaust pipe diameter - 127 mm
Sea suction pipe diameter - 40 mm
Fuel pipe connection diameter - 10 mm
