Ro-Ro cargo ship
SUAR VIGO Hijos de J. Barreras

Add to MyNauticExpo favorites

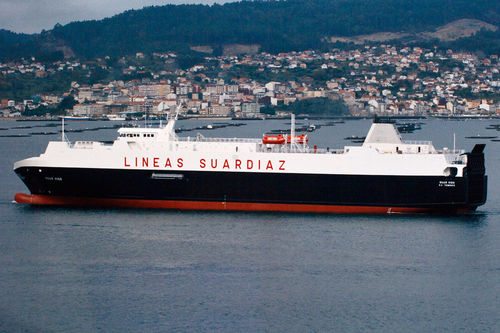

Ro-Ro cargo ship Ro-Ro cargo ship - SUAR VIGO
{{requestButtons}}

Characteristics

  • Type:

    Ro-Ro

  • Length:

    149.38 m (490'01")

  • DWT:

    4,400,000 kg (9,700,340 lb)

Description

Main particulars:Length Overall: 149.38 m
Length between Perpendiculars: 139.50 m
Moulded Breadth: 21.00 m
Depth to Main Deck: 7.00 m
Summer Draught: 5.85 m
Deadweight at Summer Draught: 4400 T
Service Speed: 20 knots
Range: 6.500 miles
Crew: 18 people + Shipowner
Drivers: 12 people
Classification:Lloyd’s Register: 100A1 ROLL-ON/ROLL-OFF & CARGO SHIP LMC, UMS
Propulsion & Manoeuvring Equipment:Propelling power: 2 x 6480 kW (2 x 8813 BHP)
Auxiliary Engines: 2 x 620 kW at 1500 rpm
Number of Shafts: 2
Propeller Revolutions: 150
Bow thrusters: 1 x 800 BHP, electrically driven
Emergency Genset: 1 of 100 kW at 1500 rpm
Cargo Capacity:Load Capacity with Cars: Lane length 1.88 wide: 6500 m
Combined Load Capacity: Lane length 1.88 m wide: 1150 m
Lane length 3.00 m for trailers: 1620 m
Cargo Equipment:Aft Ramp-Door: 15 m length, 10 m wide
Fixed Ramp: 43 m length and 3.5 m wide
Articulated Cover on Main Deck: 39 m length, 3.5 m wide
Hoistable Ramp: 29.5 m length and 3.5 wide
Fixed Ramp: for cars between upper deck and deck 1
Hoistable Cardecks: 3 hoistable intermediate platforms for cars between:
- main deck and double bottom
- main deck and upper deck
- upper deck and intermediate deck
Tanks Capacity:Fuel-oil Capacity: 770 m³ (approx.)
Diesel-oil Capacity: 100 m³ (approx.)
Lub. Oil Capacity: 50 m³ (approx.)
Domestic Fresh Water Capacity: 140 m³ (approx.)
Ballast Water Capacity: 2.2330 m (approx.)
