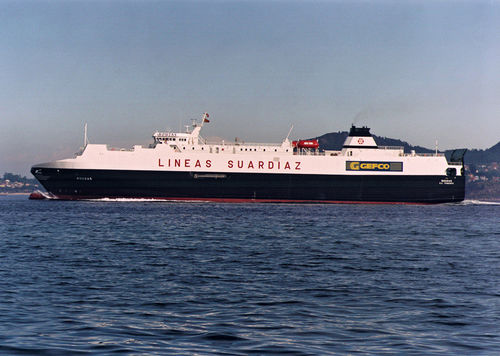

Ro-Ro cargo ship

Add to MyNauticExpo favorites
Ro-Ro cargo ship Ro-Ro cargo ship - BOUZAS


  • Type:


  • Length:

    141.25 m (463'05")

  • DWT:

    4,660,000 kg (10,273,541 lb)


Main particulars:Length Overall: 141.25 m
Length between Perpendiculars: 132.00 m
Moulded Breadth: 21.00 m
Depth to Main Deck: 7.00 m
Maximum Draught: 6.00 m
Deadweight at Maximum Draught: 4660 T
Service Speed: 20 knots
Range: 7000 miles
Crew: 18 people + Shipowner
Drivers: 12 people
Number of Accommodation Decks: 1+
Classification:Lloyd’s Register: 100A1 ROLL-ON/ROLL-OFF & CARGO SHIP LMC, UMS
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 6480 kW (4 stroke) (2x8813 BHP) at 550 rpm
Number of Variable Pitch Propellers: 2
Number of Shafts: 2
Propeller Revolutions: 150
Bow Thruster: 1 variable pitch and electrically driven propeller of 800 BHP
Emergency Set: 1 diesel engine of 150 BHP (110 kW) at 1500 rpm
Cargo Capacity:Number of Cargo Decks: 4 + 3 movable cardecks
Capacity for Cars Only: 1253
Capacity for Trailers: 110 trailers + 231 cars
Sockets for Refrigerating Trailers: 50
Cargo Equipment:Stern Ramp-Gate: 15 m length X 10 m width
Fixed Ramp: between main deck and double bottom, 43 m X 3.50 m
Hinged Cover: between double bottom and main deck
Movable Ramp: between main deck and upper deck, 29.50 m x 3.50 m
Ramp for Cars: between upper deck and intermediate deck
Movable Cardecks: 3, between double bottom and main deck; main deck and
upper deck, and upper deck and intermediate deck
Cargo Capacity:Fuel-oil Capacity: 875 m³ (approx.)
Diesel-oil Capacity: 115 m³ (approx.)
Lub. Oil Capacity: 45 m³ (approx.)
Domestic Fresh Water Capacity: 130 m³ (approx.)
Ballast Water Capacity: 2000 m³ (approx.)
