LPG carrier cargo ship
CELANOVA

Add to MyNauticExpo favorites

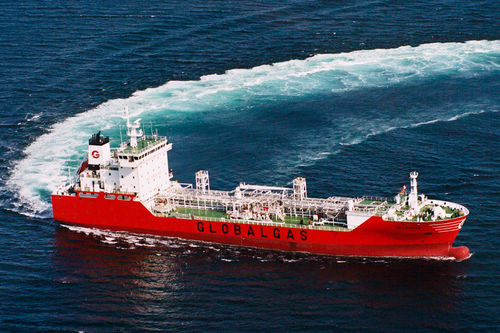

LPG carrier cargo ship LPG carrier cargo ship - CELANOVA
{{requestButtons}}

Characteristics

  • Type:

    LPG carrier

  • Length:

    120 m (393'08")

  • DWT:

    7,465,000 kg (16,457,508 lb)

Description

Main particulars:Length Overall: 120.00 m
Length between Perpendiculars: 112.00 m
Moulded Breadth: 20.00 m
Depth to Main Deck: 10.80 m
Design Draught: 5.60 m
Summer Draught: 6.70 m
Deadweight at Summer Draught: 7465 T
Service Speed: 15.3 knots
Range: 5000 miles
Crew: 17 people
Superstructure decks: 4
Classification:Bureau Veritas: I HULL MACH “LIQUIFIED GAS CARRIER” UNRESTRICTED
NAVIGATION AUT-UMS
Propulsion & Manoeuvring Equipment:Main Engine: 1 two strokes, diesel-engine, 5920 kW at 173 rpm
Generating Sets: 3 x 750 kW at 1000 rpm
Propellers: 1
Propeller Revolutions: 173 rpm
Bow Thruster: 450 kW electrically driven
Emergency Set: 200 kW at 1500 rpm
Cargo Capacity:5 Cylindrical Tanks of 1400 m each
Total Capacity: 7000 m
Segregations: 2
Semi-pressurized: -48ºC
Tanks Capacity:Fuel-oil Capacity: 470 m³
Gas-oil Capacity: 70 m³
Lub. Oil Capacity: 50 m³
Drinkable Fresh Water Capacity: 60 m³
Distilled Water Capacity: 16 m³
Ballast Water Capacity: 3100 m³
