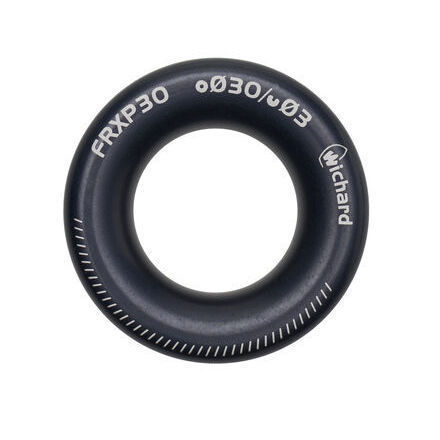

Sailboat friction ring FRXP30roundmax. rope ø 30 mmaluminium
Add to favorites
Compare this product
Characteristics
- Applications
- for sailboats
- Type
- round
- Maximum line diameter
- max. rope ø 30 mm
- Other characteristics
- aluminium
Description
Description
Wichard expands its friction ring range with four large-opening FRXP models. These large-passage rings feature a hard-anodized finish and a geometry designed to limit rope wear while accommodating multiple lines. The outer groove accepts a line or bungee to hold the ring in position. Reference: 23003.
Applications
Technical specifications
Wichard expands its friction ring range with four large-opening FRXP models. These large-passage rings feature a hard-anodized finish and a geometry designed to limit rope wear while accommodating multiple lines. The outer groove accepts a line or bungee to hold the ring in position. Reference: 23003.
Applications
- 3D sail trimming systems
- Routing or retaining multiple lines on deck and in control systems
Technical specifications
- Materials: hard-anodized aluminium
- Working load (WL) for nautical applications: 1800 kg
- Weight: 60 g
- B (diameter): 30 mm
- C: 16 mm
- D: 3 mm
- Overall diameter: 56 mm
- Designed to accept multiple lines; outer groove for line or bungee retention
Catalogs
No catalogs are available for this product.
See all of Wichard‘s catalogs
