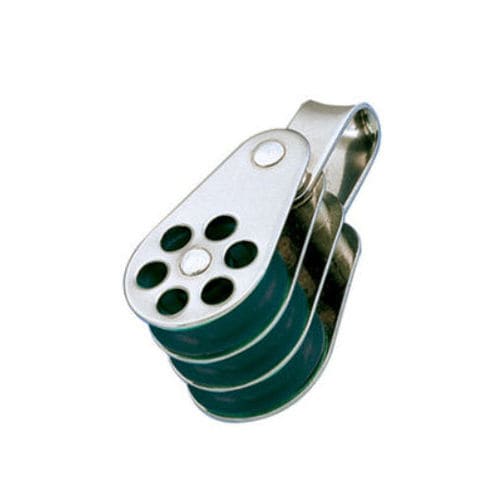

Triple block 30724cheekwith shackleplain bearing
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- triple
- Type
- cheek
- Configuration
- with shackle
- Bearing type
- plain bearing
- Maximum line diameter
- max. rope ø 6 mm, max. rope ø 4 mm
- Application domain
- for sailing dinghies
- Applications
- boom
- Material
- stainless steel
- Working load
200 kg
(440.9 lb)- Breaking load
500 kg
(1,102.3 lb)- Thickness
27 mm
(1 in)- Center diameter
24 mm
(1 in)- Weight
40 g
(1 oz)
Description
Complete range of stainless steel blocks for dinghies
Light weight, reliable and good performance
Available in a wide range of size and fastening systems
Applications
For dinghies and catamarans: boom vang, trapeze retriever systems, cunningham, outhaul, control lines...
Low load applications on larger yachts
Materials - Composite sheave
316L stainless Steel grade cheeks
Rope size - Pour cordage de 4 à
Length (mm) - 56
Width (mm) - 25
