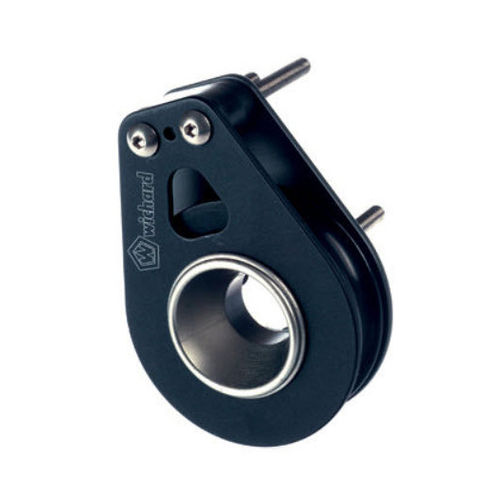

Cheek block 93120
flatswivelsingle

cheek block
cheek block
cheek block
Add to favorites
Compare this product

Characteristics

Type
cheek, flat, swivel
Number of sheaves
single
Configuration
with fork
Maximum line diameter
max. rope ø 10 mm, max. rope ø 8 mm
Application domain
for sailboats
Applications
jib
Material
stainless steel, aluminum
Working load

320 kg (705.5 lb)

Breaking load

900 kg (1,984.2 lb)

Description

Single roller block - Sheave 40 - Cheek block - M5 Description Complete range of blocks Excellent high-speed low load and high-function load characteristics Interchangeable head fastening systems for multiple attachment methods Protection of the sheave by the cheeks for added durability Multiple position, grub screw lockable head post swivel Alloy sheaves design to suit modern ropes Applications Cheek blocks applications for genoa sheet… Materials - Delrin® roller bearing Forged stainless Steel shackle Stainless Steel swivel head Hard anodized aluminium sheave Aluminium cheeks (hard coat anodization Rope size - Pour cordage de 8 à Length (mm) - 67 Width (mm) - 42 Thickness (mm) - 25 Sheave diameter (mm) - 40 Working load (kg) - 320 Breaking load (kg) - 900 Weight (g) - 106
