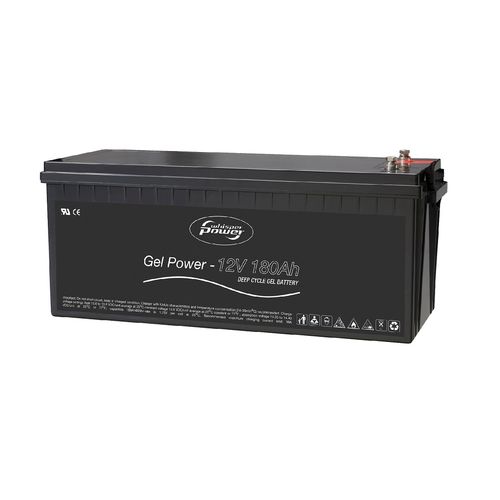

Marine battery 40290072

12 Vgel

SPECIFICATIONS Nominal capacity (C20) - 180 Ah Nominal voltage - 12 VDC Type - Deep cycle GEL battery with 12 years floating design life. Superior design for frequent cyclic discharge applications under extreme temperatures. Strong grid construction to ensure reliability under frequent deep discharge use. Over 400 cycles possible at Weight (tolerance 1.5%) - 53 Kg Dimensions l*w*h in mm (excl. terminals) - 530*209*214 mm Terminal type - M8 stainless steel Number of cells - 6 CHARGE/DISCHARGE PARAMETERS Constant voltage Charging (IU, float) - 13.60 to 13.80 VDC @ 25C Cyclic Charging ( IUU, absorption) - 14.25 to 14.60 VDC @ 25 C Recommended charging current limit (higher possible) - 36 A Temperature cut-off ratio - 4mv/cell/°C Discharge cut off voltage - 1.75 VDC @ (A) <= 0.2 C 1.70 VDC @ 0.2 C (A) = 1.0 C RATED CAPACITY @ 25°C 20 hrs discharge - 180 Ah 10 hrs discharge - 169 Ah 5 hrs discharge - 146 Ah Peukert Coefficient - 1.21
