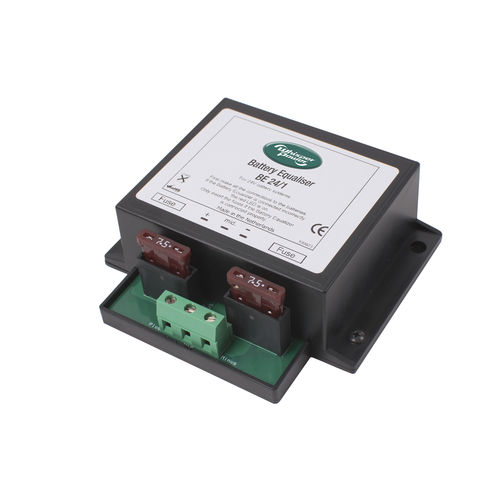

Boat battery balancer WP-BE

The WP – BE Battery Balancer operates as a voltage equaliser. When the charge voltage of a 24 V battery system reaches 27 V, the Battery Balancer is activated and compares the voltage of the two series connected batteries and equalizes the voltage to one level. The Battery Balancer draws a small current from the battery (or parallel connected batteries) with the highest voltage. By keeping the voltages at the same level the batteries cannot damage each other. TECHNICAL SPECIFICATIONS Current 2.5 A System Voltage 24 VDC Input Voltage Range 20 - 35 VDC Dimensions ( l × w × h ) 35 × 100 × 90 mm Weight 100 g Standby Current 1.5 mA Active Current Consumption 3 mA Voltage Range 25.6 - 32 VDC Warranty 2 years
