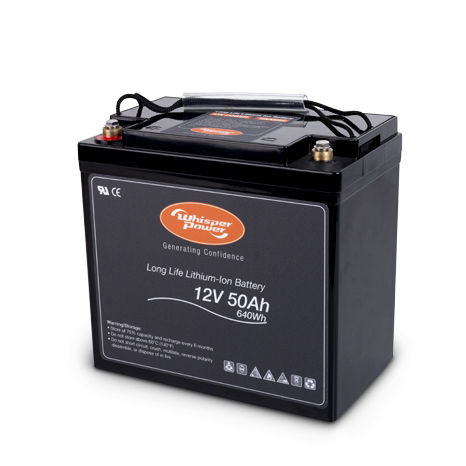

12 V battery 40291201lithiumion
Add to favorites
Compare this product
Characteristics
- Voltage
- 12 V
- Storage system
- lithium, ion
Description
• High power density, only 8.1 kg
• 12 V 90 Ah, Li Fe PO4
• Can be discharged up to 100%
• >2000 cycles at average use
• Perfect for 12 VDC systems
TECHNICAL SPECIFICATIONS
Height (mm) - 200 mm
Width (mm) - 132 mm
Weight - 8.12 kg
Nominal voltage (V) - 12.8 V
Maximum voltage - 15.6 V
End charge voltage - 14.6 VDC +- 0.2 V
Max float charge current - 25 A
Pulsed discharge current (10 sec) - 60 A
Usable battery capacity at 20˚C - 50 Ah / 640 Wh
Temperature range (charging) - 0°C to 45°C
Temperature range (discharging) - -20°C to + 60°C
Temperature range (storage) - 0°C to + 40°C
