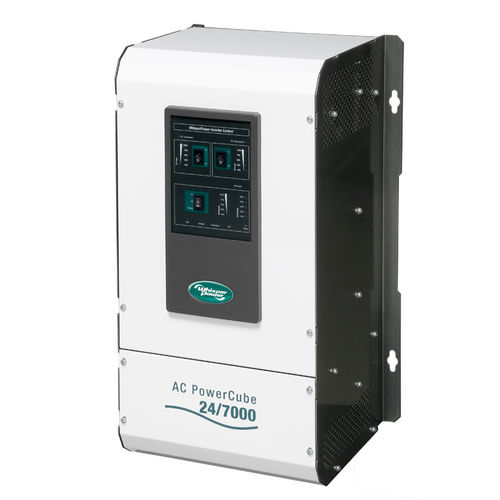

Voltage inverter 60203004
DCACmarine

voltage inverter
voltage inverter
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
AC
Application domain
marine
Voltage

24 V

Power

7,000 W

Description

GENERAL SPECIFICATIONS Output voltage (± 5%) - 230V – 50Hz (± 0.01Hz) Output waveform - Pure sine wave Nom. battery voltage - 24 V P30 power at 40 °C, cos phi 1 - 7500 VA Cont. power at 40 °C, cos phi 1 - 6000 VA Peak load 20sec - 15000 VA AC connection - Internal Efficiency - 92 % Display/read-out - LED display Min. battery capacity - > 600 Ah Dimensions (h x w x d) - 575 x 310 x 316 mm Weight - 28 kg Approvals - CE, ABYC compliant TECHNICAL SPECIFICATIONS Technology - HF switch mode , 6 times Low battery voltage, switch off - 19 V ± 0.5 V Low battery voltage, switch on - 22 V ± 0.5 V High battery voltage, switch off - 32 V ± 0.5 V High battery voltage, switch on - 30 V ± 0.5 V Max. ripple on DC (battery) - 5% RMS Input current (nominal load) - 375 A No-load power consumption (ON mode) - >550 mA – 12 VA Min. DC fuse (slow blow) - 2 x 250 A Min. cable size - 2 x 7 mm² Harmonic distortion typical - 40°Ca -13 to 176°F Protection degree - IP23 Cooling - Natural/forced Sound level - 48 dBA at 1 mtr Protections - Over heating, over load, short circuit, high battery, low battery ACCESSORIES DC battery cables - Pre-installed, max 2 metres Remote panel - Analogue on- off / DC-AC information Remote panel - Digital Power System Control Panel WhisperSwitch - Transfer switch Shore-Generator / Inverter Accessories - Touch panel 7 inch
