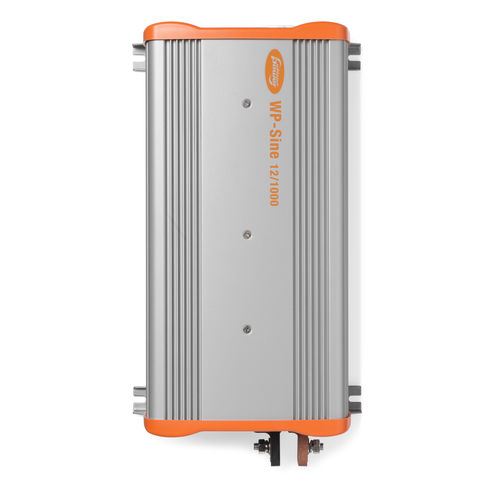

Voltage inverter 61121500
DCACmarine

voltage inverter
voltage inverter
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
AC
Application domain
marine
Voltage

12 V

Power

1,000 W

Description

SPECIFICATIONS AC output - 1 x Schuko socket Power (Continuous) - 1000 W Power (Peak, 500 mSec) - 2000 W Output voltage - 230 V Output frequency - 50 Hz Total harmonic distortion (THD) - <5% DC INPUT Nominal battery voltage - 12 V Operation range - 10.5 - 15.5 V Input current - 94 A No load consumption - 0.8 A DC OUTPUT 5V USB - 750 mA DISPLAY LED indicator - Yes Digital display - Input Voltage / Current, Output Power PROTECTIONS Input Undervoltage Warning - 11.2 V Input Undervoltage Shutdown - 10.5 V Input Undervoltage Recovery - 11.8 V Input Overvoltage Shutdown - 15.5 V Output Power Warning - Yes Output Power Shutdown - Yes Output Short Circuit - Yes Temperature Warning - Yes Temperature Shutdown - Yes Conformity - Directive EMC 2004/108/EC Low voltage directive 2006/95/EC Operating temperature range - -20 - 55°C (derating above 40°C) Relative humidity in operation - 95% without condensation Ventilation - Forced cooling Dimension hxwxl [mm] - 185 x 319 x 90 mm Weight - 2.9 kg Battery connection - M6 studs Ground Lug Connection - M6 studs Warranty - 2 years
