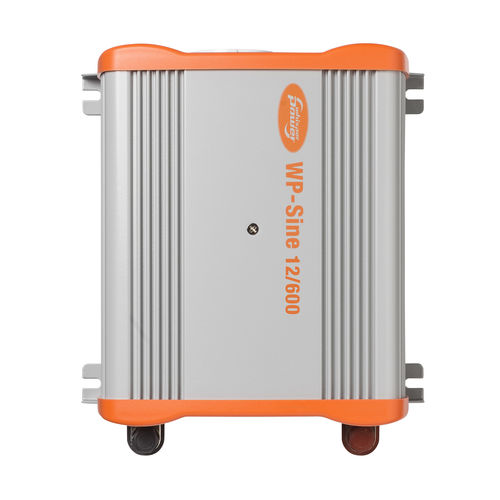

Voltage inverter 61120600
DCACmarine

voltage inverter
voltage inverter
Add to favorites
Compare this product


Characteristics

Type
voltage
Input
DC
Output
AC
Application domain
marine
Voltage

12 V

Power

600 W

Description

SPECIFICATIONS AC output - 1 x Schuko or UK socket Power (Continuous) - 600 W Power (Peak, 500 mSec) - 800 W Output voltage - 230 V Output frequency - 50 Hz Total harmonic distortion (THD) - <5% true sine wave DC INPUT Nominal battery voltage - 12 V Operation range - 10.5 - 15.5 V Input current - 57 A No load consumption - 0.4 A DC OUTPUT 5V USB - 750 mA DISPLAY LED indicator - No Digital display - Input Voltage / Current, Output Power PROTECTIONS Input Undervoltage Warning - 11.2 V Input Undervoltage Shutdown - 10.5 V Input Undervoltage Recovery - 11.8 V Input Overvoltage Shutdown - 15.5 V Output Power Warning - Yes Output Power Shutdown - Yes Output Short Circuit - Yes Temperature Warning - Yes Temperature Shutdown - Yes Conformity - Directive EMC 2004/108/EC Low voltage directive 2006/95/EC Operating temperature range - -20 - 55°C (derating above 40°C) Relative humidity in operation - 95% without condensation Ventilation - Forced cooling Dimension hxwxl [mm] - 89 x 175 x 200 mm Weight - 1.73 kg Battery connection - M6 studs Ground Lug Connection - M6 studs Warranty - 2 years

Catalogs

No catalogs are available for this product.

See all of WhisperPower‘s catalogs
