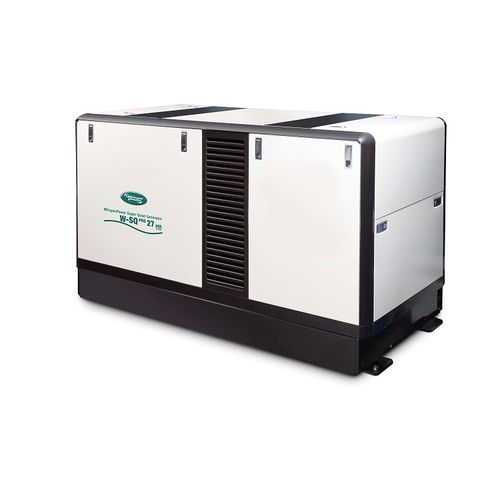

Diesel generator set W-SQ PRO 27 MOBILE

for boats

Output power 27.5 kVA / 22 kW at 1500 RPM 1-phase power output (1x 230VAC, 3 wire) or 3-phase power output (3x 400 VAC) Maximum load of 20 kVA for single phase Synchronization option available at request for running two generators (2x SQ 27) in parallel to double the power MAIN SPECIFICATIONS Nominal power 25º - 27.5 kVA / 22 kW Generator - Aircooled Output frequency - 230 V / 50 Hz - 3 x 400 VAC Harmonic distortion - < 3 % Frequency tolerance (Hz) - ± 5 % Starter battery - 12 V Battery charge current - 40 A Sound level - 58 dB SPECIFICATIONS DIESEL ENGINE Engine model - Mitsubishi S4S - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 3331 cc Bore & stroke - 94 × 120 mm Air consumption - 2.8 m³/min Engine cooling - Indirect radiator Fuel consumption (no load - full load) - 1-6 l/hr DIMENSIONS & WEIGHT Length - 1555 mm Width - 749 mm Height - 805 mm Dry weight - 640 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 2 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - Optional DDC Control Panel - Standard WP-Touch full colour panel 7” - Optional
