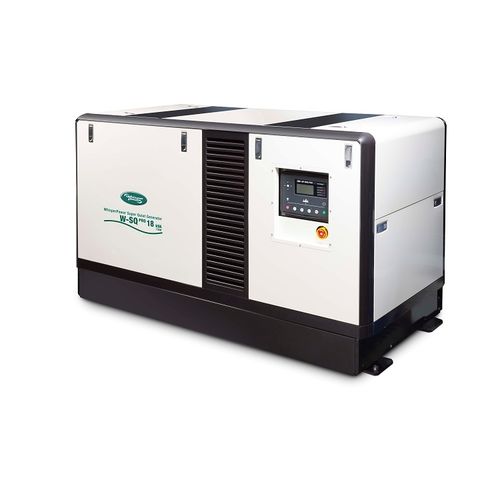

Diesel generator set W-SQ PRO 18 MOBILE

for boats

MAIN SPECIFICATIONS Nominal power 25º - 18 kVA / 15 kW (22 kVA / 18 kW) Generator - Aircooled Output frequency - 230 V - 50 Hz / 60 Hz Harmonic distortion - < 5 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR Starter battery - 12 V / 40 A Sound level - 55 dB SPECIFICATIONS DIESEL ENGINE Engine model - Kubota V2203 M BG - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 2505 cc Bore & stroke - 88 × 103 mm Air consumption - 2.1 m³/min Engine cooling - Indirect radiator Fuel consumption (no load - full load) - 1-5 l/hr DIMENSIONS & WEIGHT Length - 1220 mm Width - 719 mm Height - 753 mm Dry weight - 454 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 1½ inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - Optional DDC Control Panel - Standard WP-Touch full colour panel 7” - Optional
