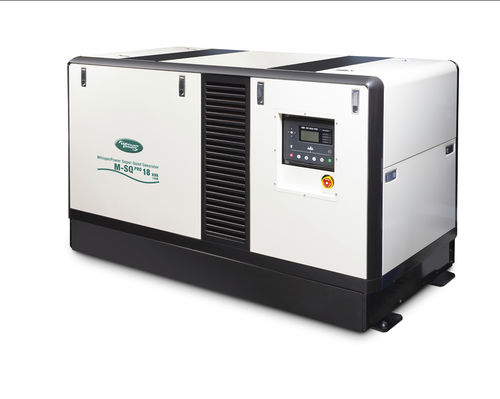

Diesel generator set M-SQ PRO 18
for boats

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Output power

16 kW
(21.8 hp)

Description

MAIN SPECIFICATIONS Nominal power 25º - 18 kVA / 16 kW (22 kVA / 18 kW) Generator - Aircooled Output frequency - 230 V - 50 Hz / 60 Hz Harmonic distortion - < 5 % Frequency tolerance (Hz) - ± 5 % Voltage regulation - AVR Starter battery - 12 V / 40 A Sound level - 55 dB SPECIFICATIONS DIESEL ENGINE Engine model - Kubota V2203 M BG - 4 Cylinder Number of cylinders - 4 Cylinder capacity - 2505 cc Bore & stroke - 88 × 103 mm Air consumption - 2.1 m³/min Engine cooling - Indirect Fuel consumption (no load - full load) - 1-5 l/hr DIMENSIONS & WEIGHT Length - 1220 mm Width - 719 mm Height - 753 mm Dry weight - 454 kg OTHER SPECIFICATIONS Dry exhaust pipe - Ø 1½ inch BSP Wet exhaust - Ø 51 mm Location oil refill cap - Top & side Max. operating angle - 25º in all directions REMOTE CONTROL PANELS Deepsea controller - Optional DDC Control Panel - Standard WP-Touch full colour panel 7” - Optional Bus connectivity - WhisperConnect / NMEA 2000

Catalogs
