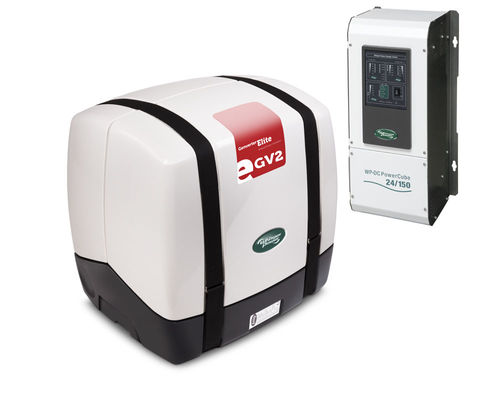

Diesel generator set Elite GV 2 MOBILE
for boatswith alternator

diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Options and accessories
with alternator
Output power

4.3 kW
(5.8 hp)

Description

All-in-one DC generator system World-wide plug-in facility from 90 VAC - 265 VAC Fast charging, reduced running time Minimal audible noise Hardly any vibration Installation examples: range extender, electrical propulsion (24 V / 48 V) or as DC powerpack MAIN SPECIFICATIONS System output - 4.3 kW (24 V - 150 A) Charge current - 150 A at 24 VDC or 80 A at 48 VDC Harmonic distortion - > 5% Parallel operation - Yes Standard remote panel - Yes ALTERNATOR SPECIFICATIONS Type - Permanent Magnet Alternator (PMA) RPM range - 1500...3000 Efficiency - 94% SPECIFICATIONS DIESEL ENGINE Engine model - Kubota Z482 (Mitsubishi optional) Number of cylinders - 2 Capacity - 479 cc Engine cooling - Indirect Fuel consumption - 1.2 - 2.5 l/hr Starting - Electrical (12 V) Starter battery - 12 V - 80 Ah (optional) 12 V Battery charger - Included DIMENSIONS & WEIGHT Length - 660 mm Width - 550 mm Height - 622 mm Dry weight - 155 kg Length PowerCube - 575 mm Width PowerCube - 221 mm Height PowerCube - 316 mm Weight PowerCube - 26 kg INSTALLATION ACCESSORIES Dry Exhaust pipe - Ø 1 inch BSP Location oil refill cap - Top & side Max. operating angle - 25º in all directions
